Electromagnetic Flow Meter

Quantity:
  • MICC

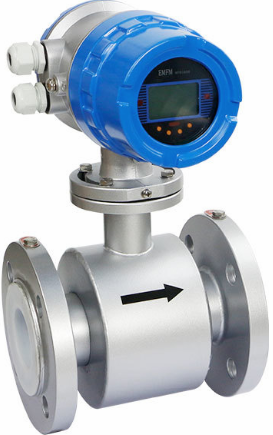

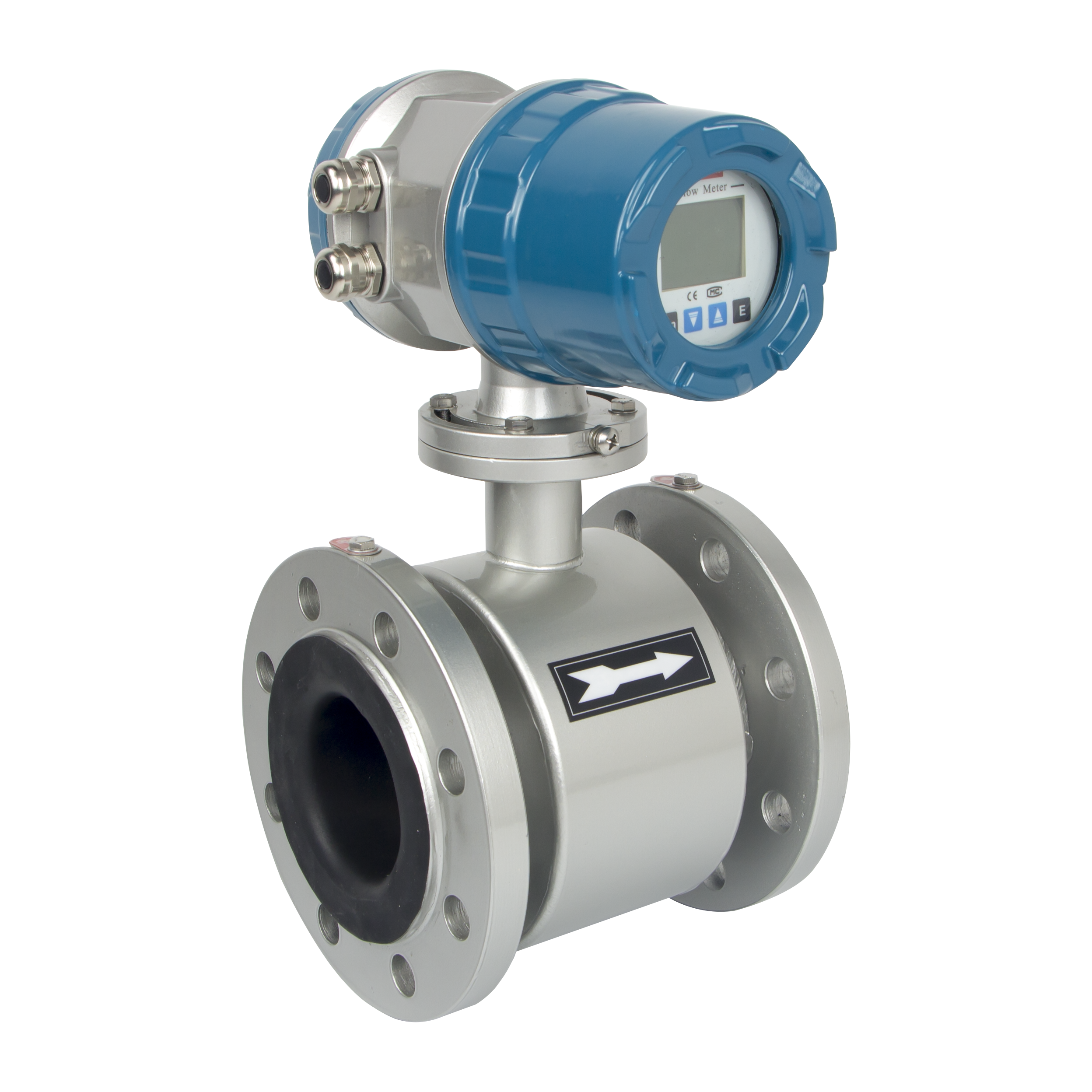

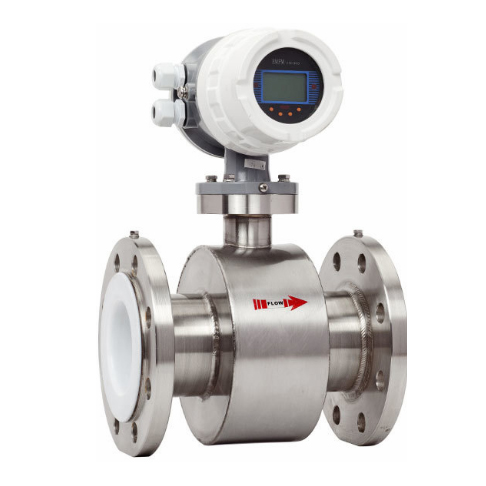

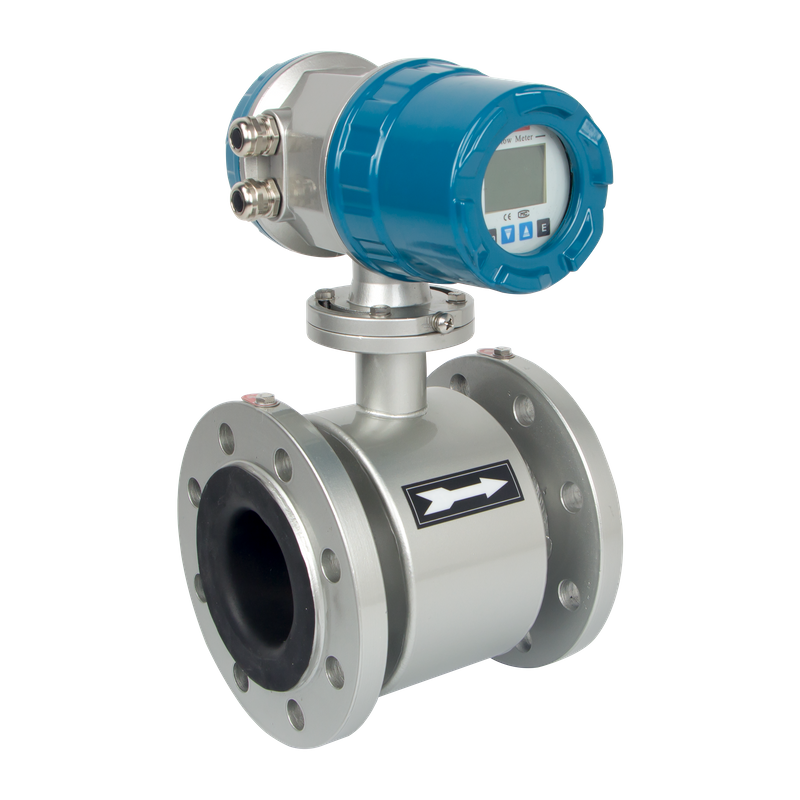

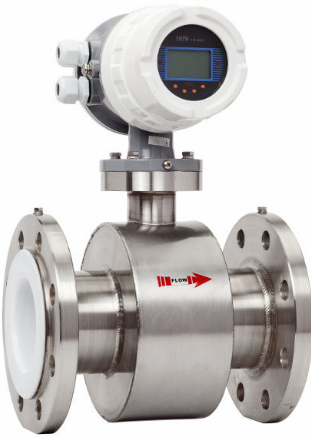

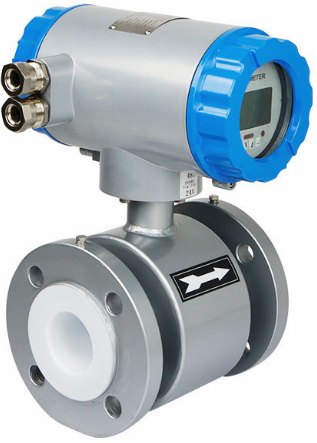

Electromagnetic Flow Meter

Electromagnetic flow meters are intended for fluid measurement in most industries including water, wastewater, food and beverage, pharmaceutical and chemical.

There are two basic components of electromagnetic flow meter: 1) The Detector, which includes the flow tube, isolating liner and measuring electrodes, and 2) The Converter, which is the electronic device responsible for signal processing, flow calculation, display and output signals.

The materials of construction of the wetted parts (liner and electrodes) should be appropriate for the specifications on the intended type of service. Review of the compatibilities consistent with the specifications is recommended.

Our electromagnetic flow meters are factory tested and calibrated. A calibration certificate is included in the shipment of each meter.


4        3    5 1


DESCRIPTION

The magnetic flow meter is one of the most flexible and universally applicable flow measurement systems available.

It is a volumetric flow meter which does not have any moving parts and is ideal for waste water applications or any dirty liquid which is conductive or water based.

Magnetic flow meter is also ideal for the applications where low pressuredrop and low maintenance are required.



OPERATING PRINCIPLE

Following Faraday's law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field.
In the electromagnetic measuring principle, the following medium is the moving conductor The voltage induced is proportional to the flow velocity and is upplied to the amplifier by means of two measuring electrodes.
The flow volume is calculated by means of the pipe cross section area.

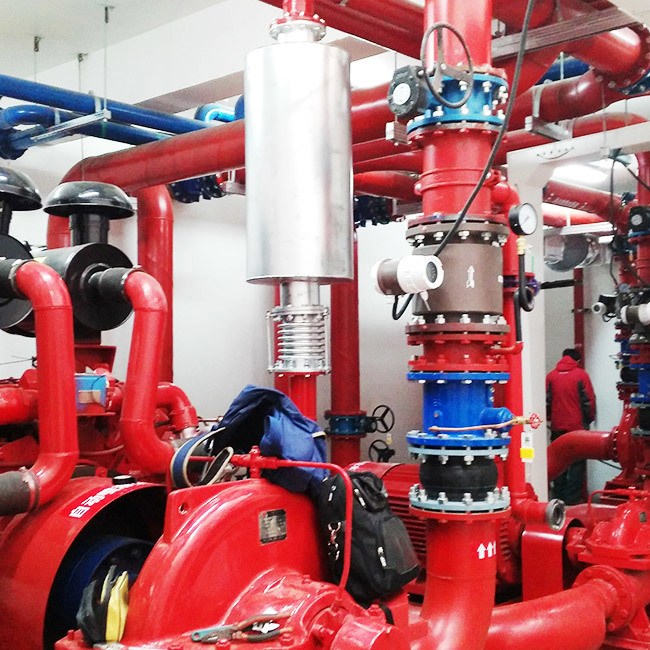

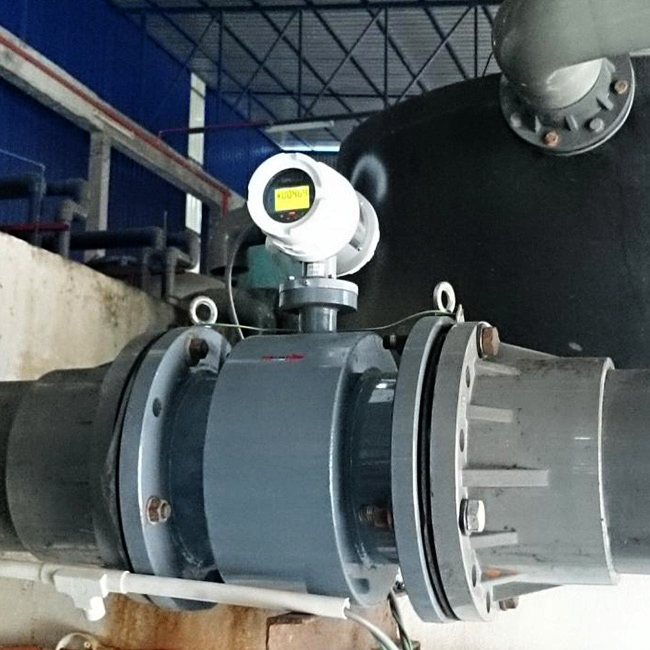

APPLICATION

-Waster water industry: transport networks sewage treatment plants, sludges

-Chemical industry: acids alkalis, dosing applications, abrasive or corrosive mediums

-Metal & mining industry: mediums with a high solid content, like ore or excavator mud

-Water industry: Revenue metering, district metering waterabstraction, leakage detection

-Pulp & paper industry: pulp, pastes, sludges & other caustic mediums, liquor, additives, bleaches, colourants

-Food & beverage industry: mixing, dosing and filling of drinks under hygienic conditions filling systems applications.

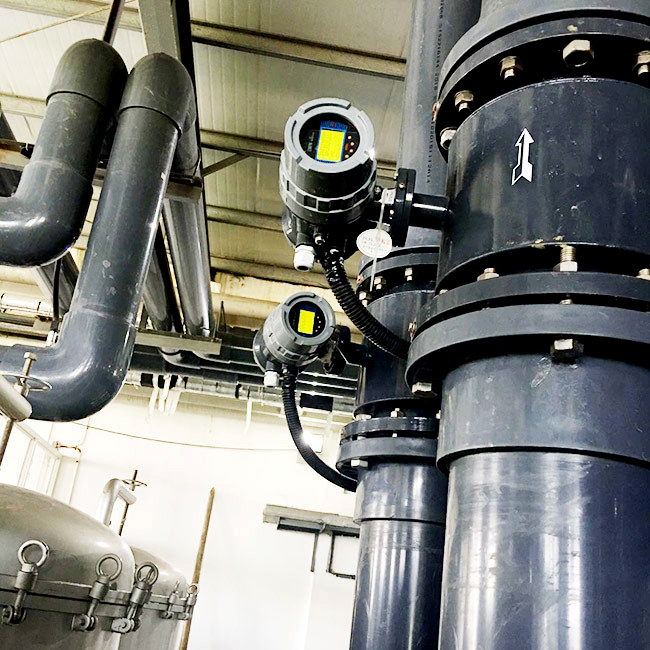

电磁流量计01 电磁流量计02 电磁流量计03 电磁流量计04

TECHNICAL DATA

Certificates

IS09001:200; CE

Diameter

PTFE:DN6-DN600 Hard ruber: ON50-DN2200

Sanitary Type: DN10-DN100; Insertion Type: DN200-DN3000

Flow Direction

Positive; Negative

Repeatability Error

±0.1%

Accuracy

±0.5% of rate; ±0.2% of rate

Medium Temperature

Hard rubber liner:-20 ...+60℃

High-temp rubber liner:-20…+90℃

PTFE liner: -20…+120℃

High-temp PTFE liner: -2O...+ 16O℃

PFA: -20 …+180℃

Nominal WorkingPressure

DN10-DN25≤M4.0Mpa

DN32-DN150≤l.6Mpa

DN200-DN60≤1.0Mpa

DN700-DN2200≤0.6Mpa

Velocity

0.3-10m/s

Ambient Temperature

-20 …+60 *C

Relative Humidity

95%

Comsumed Power

<20W


MODEL SELECTION

Model

Suffix Code

Description

LDG-

1

2

3

 4

5

6

7

8

Electromagnetic Flowmeter

Type

B








Btyps

T








T type( DN15- DNIOOonly)

F








Ftype

Y








Y type

Diameter

XXXX








Stand for diameter
0004: DN4: 0015: DN15
0100: DN100; 2200: DN2200

Structure

S








Compact Type with local display

L

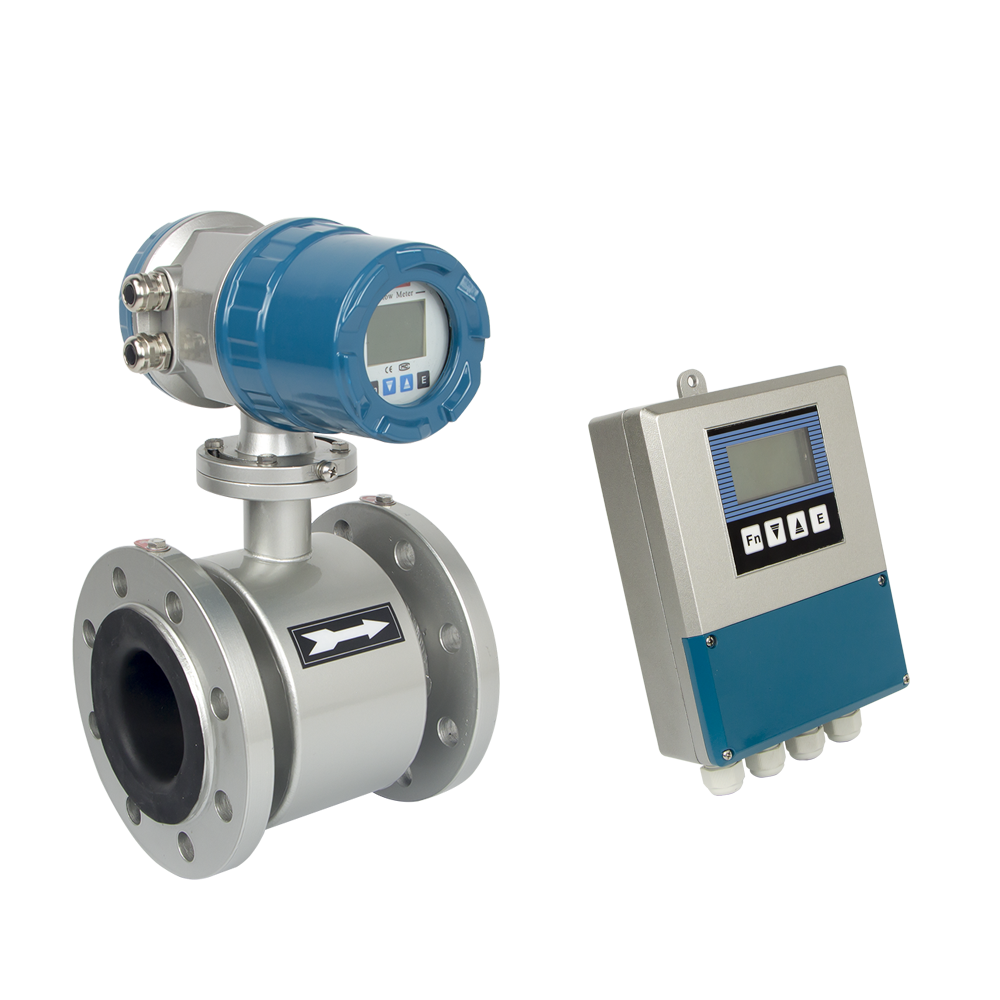

Remote Type; 10 meters cable default

Electrode Material

M








SS316L

T








Titanium

D








Tantalum

H








Hastelloy AlloyC

P








Platinum-lridlum

Signal Output

0







No Output

1







4-20mA / Pulse

Liner Material

X






Hard Rubber

p






Propylene Oxide

F






PTFE

A






PFA

Power Supply

-0





110-240VAC

-1





24V DC (20-36V DC)

-2





Battery Power Supply

Communication

0




No Communication

1




ModbusRS485

2




HART

3




GPRS

4




ProfibusDP

SensorGrounding

0



No Grounding

1



Grounding Ring

2



Grounding Electrode

Connection

DXX


D16:DIN PN16 Flange; D25: DIN PN25 Flange.

AXX


A15: ANSI150# Flange; A30: ANSI 300# Flange.

JXX


J10: JIS 10K Flange; J20: JIS20K Flange.

XXX


On request

Body Material

Cs
S4

Carbon Steel
Stainless Stool 304

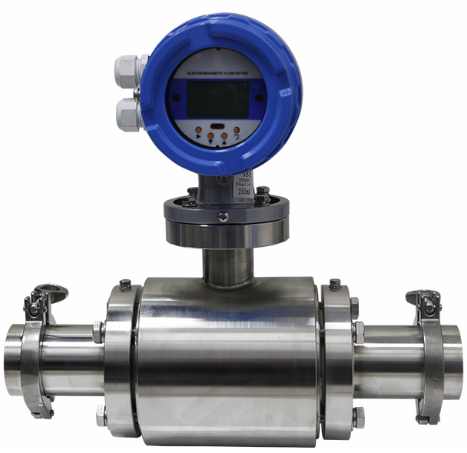

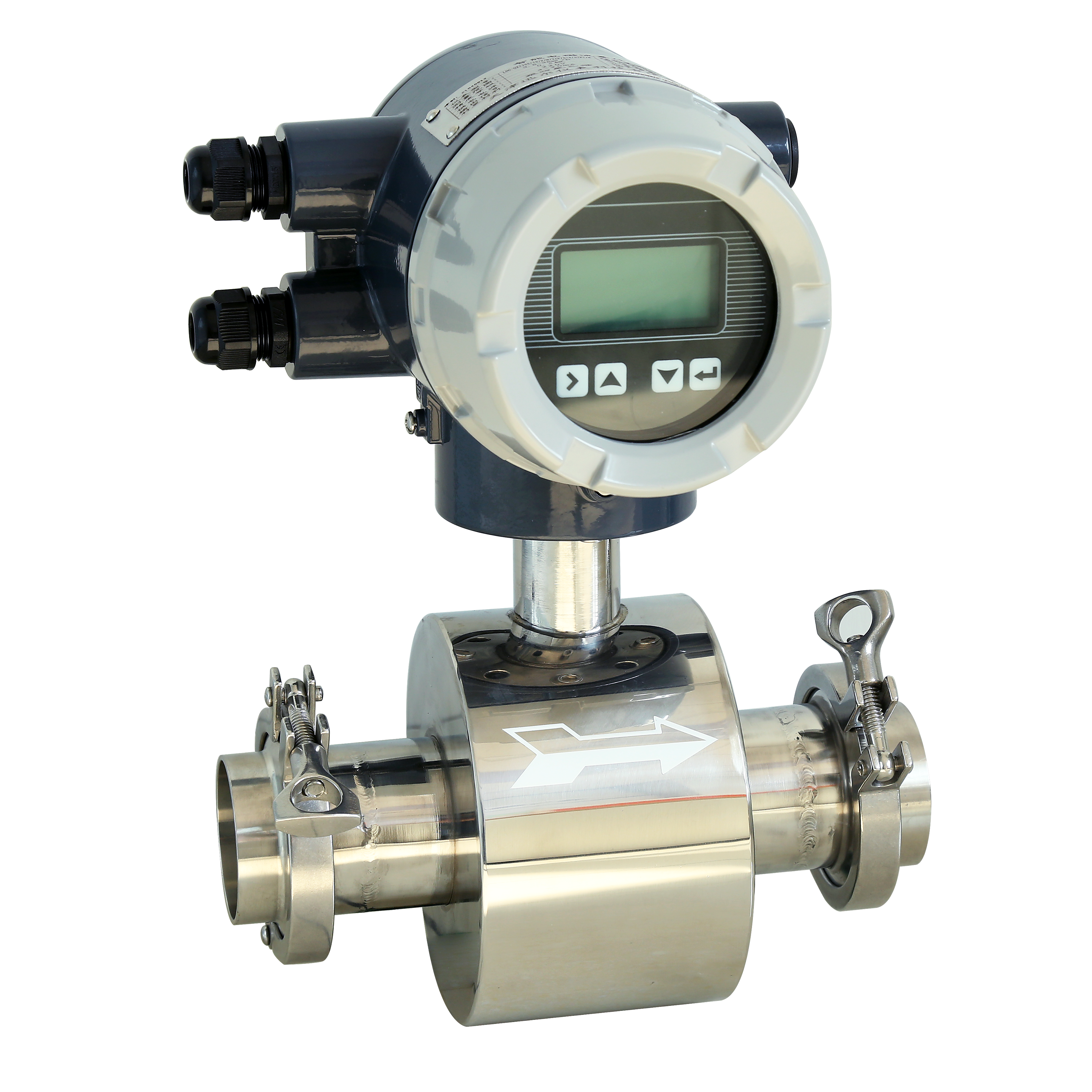

SANITARY TYPE MODEL SELECTION

Model

Stuffix Code

Description

LDGS-

1

2

3

4

5

-6

7

8

9

11

Sanitary Magnetic Flowmeter

Diameter

xxxx










Stand for diameter
0010:DN10
0100:DN100

Structure

S









Compact type with local display

L









Remote Type: 10 meters cable default

Electrode Material

M








SS316L

T








Titanium

D








Tantalum

H








Hastelloy Alloy C

P








Platinum-Iridium

Signal Output

0







No Output

1







4-20mA / Pulse

Liner Material

F






PTFE

A






PFA

Power Supply

0





110-240V AC

-1





24V DC

-2





Battary Power Supply

Communication

0




No Communication

1




Modbus RS485

2




HART

3




GPRS

4




Profibus-DP

Sensor Grounding

0



No Grounding

1



Grounding Ring

2



Grounding Electrode

Connection









TRC


Tri-clamp for sanitary connection

Body Material










S4

Stainless Steel 304


Model Selection

Model

Suffix Code



Description

LDGC-

-⑤

Insertion Magnetic Flowmeter

Diameter

××××







Stand for diameter
0200:DN200
3000:DN3000

Structure

S






Compact type with local display

L






Remote type with 10 meters cable

Electrode Material

M





SS316L

T





Titanium

D





Tantalium

H





Hastelloy Alloy C

P





Platinum-Iridium

Signal output

0




No Output

1




4-20mA / Pulse

Power Supply

-0



110-240V AC

-1



24V DC (20-36V DC)

-2



Battery Power Supply

Communication

0


No Communication

1


Modbus RS485

2


Hart

3


GPRS

4


Profibus DP

Connection

S

Simple Type

B

Ball Valve Type
