WSM-130
MICC

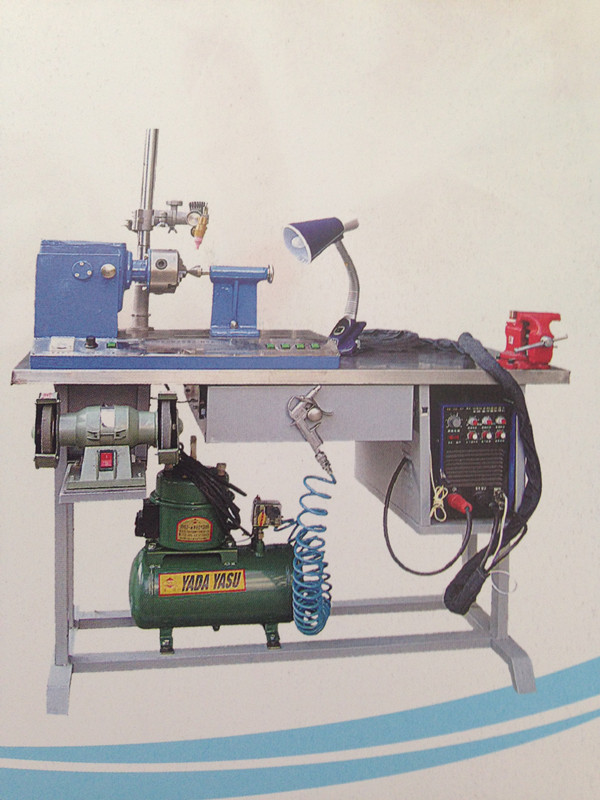

High frequency direct current/pulse Argon welding machine
Introduction:
High frequency direct current/pulse Argon welding machine, absorb the international advanced technic, designed by many patent of invention. It is connected with Argon rectifier and Argon controller. Our machine is reliable and technics welding than other, on advanced world levels. It is for 0.15mm-7mm thick stainless steel, carbon steel, superalloy steel and other metal welding. It is used in industry automatic welding and handle welding.
The special character of this machine is that, it is designed for temperature meter armored series and usual thermocouples and RTDs, heaters’ protection tube, flange, fixing thread, bolt, check ring, stop plate welding. Letting (3mm~8mm armored Pt RTD and 1mm~22mm) heater’s welding standardized, programmed, simplified which is quite important for temperature meter producer and electrical industry.
Technical date
power | Single-phase 220V±15% 50±2Hz | Pulse frequency | 0.25~30Hz |
Floating voltage | 60V±10V | Duty cycle | 60% |
Rated welding current | 130A | Arc-starting | Non-contact frequency Arc |
Least welding current | 3A | weight | 130kg |
Peak current | 3A~130A | volume | 1200mm*530mm*1500mm |
Background current | 3A~100A |
