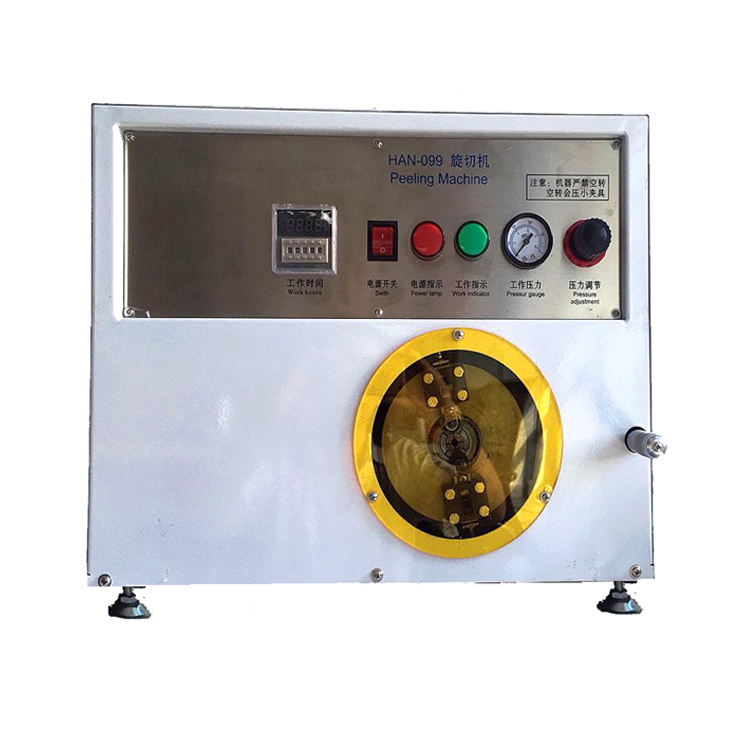

HAN-099
MICC
Feature:
Size | 3mm/4mm/5mm/6mm (1mm/2mm/8mm optional request) |
Power | 130W |
Voltage | 220V |
Weight | 45KG |
Dimension | 470*450*450mm（length*width*height） |
Principals
Using the power of Air Pressure & the Motor’s rotation to drive the mold rolling and make the requested grooves on the units.
Suitable Material
Stainless Steel Tubes, Copper Tubes, Aluminum Tubes.
Need Suitable Tubes to process
The thickness of tubes is important. Usually, it must be less than 0.5mm.
Thicker thickness needs more time to process. The tube hardness also influences the lifetime of the molds. Higher tube hardness, less lifetime on molds.
Tightness between tubes and wire
Diameters of tubes and wire matter.Higher tightness between tubes and wire can make the finish units more perfect.
MI Cable Stripper Machine Instruction.pdf
