K, J, T, E, R, etc.
MICC
All thermocouple types(K, J, T, S, N)
High quality impact resistant material
Standard Connector and Min. Connector
Easy to wire
| Type | Compensating Alloy Used in Connector | Type | Shell Color | Shell Material | Max temp. range | Weight | |
| + Lead | - Lead | ||||||

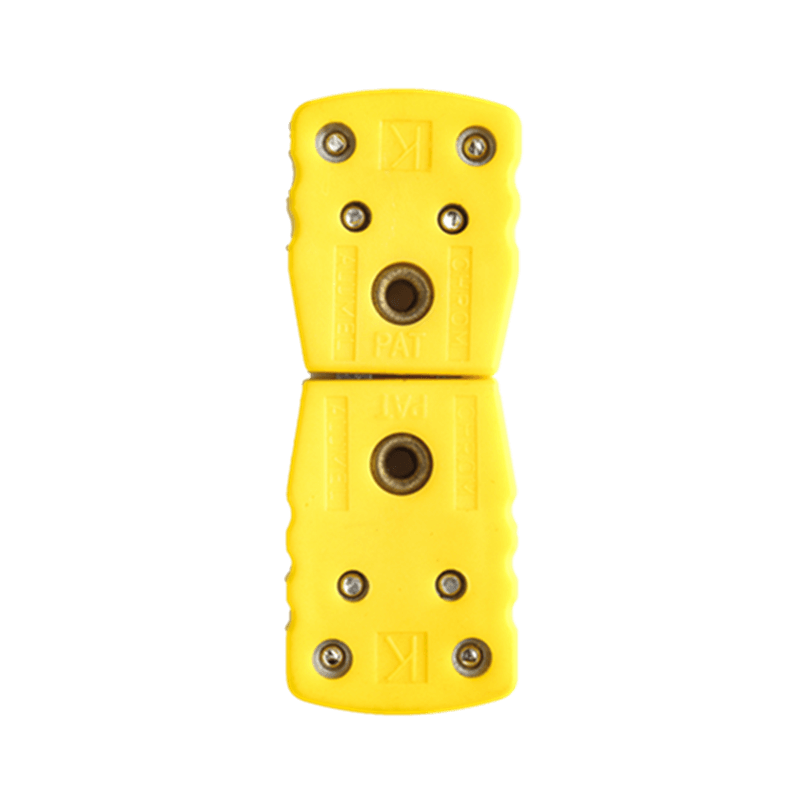

| K | Ni-Cr | Ni-Al | MICC-MC-K-M/F | Yellow (green) | ABS | 120℃ | 8g |

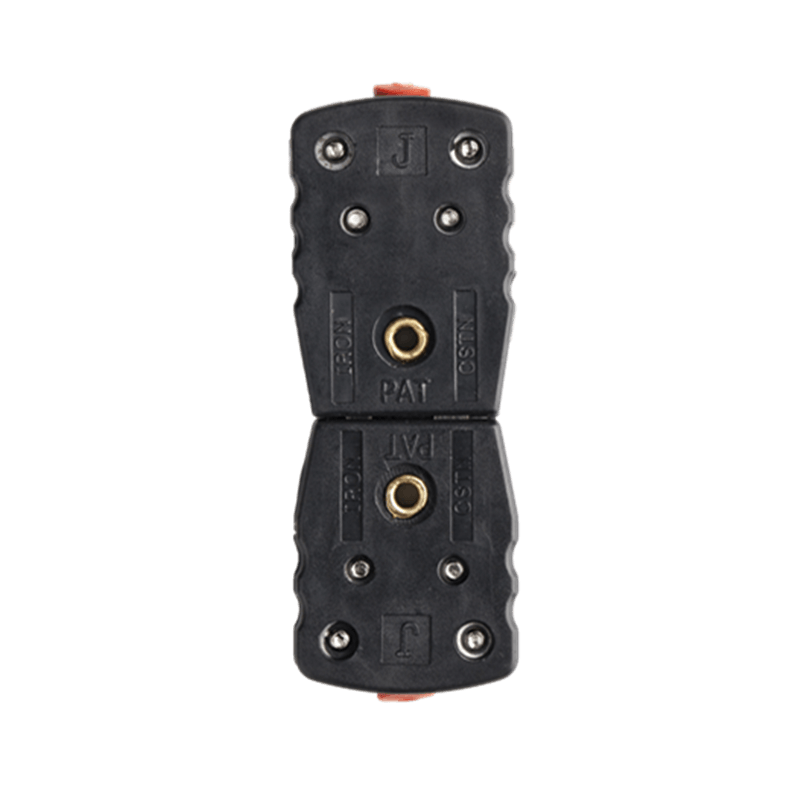

| J | Fe | Cu-Ni | MICC-MC-J-M/F | Black | ABS | 120℃ | 9g |

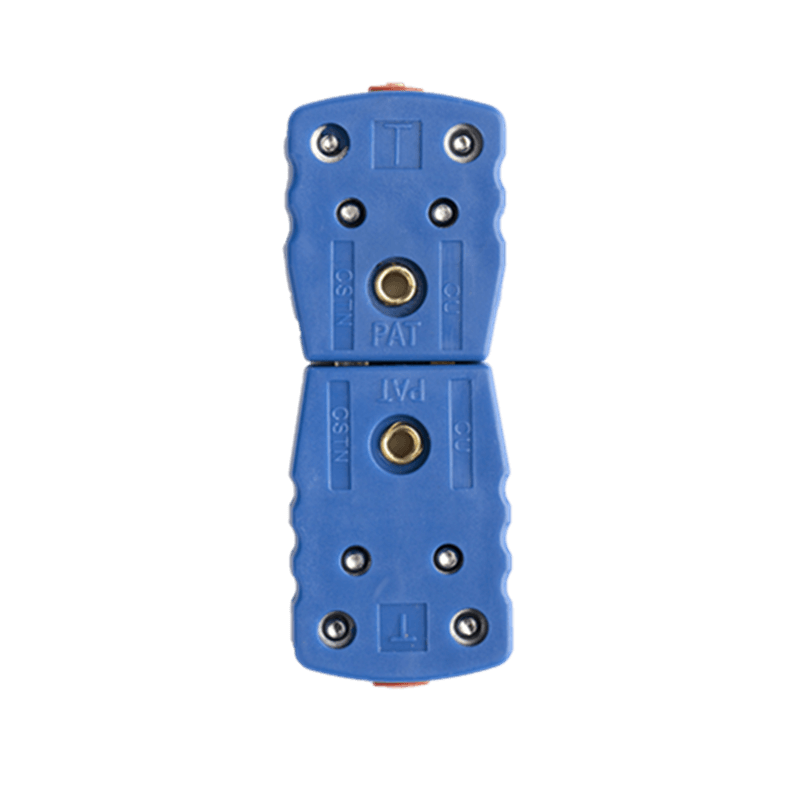

| T | Cu | Cu-Ni | MICC-MC-T-M/F | Blue | ABS | 120℃ | 9g |

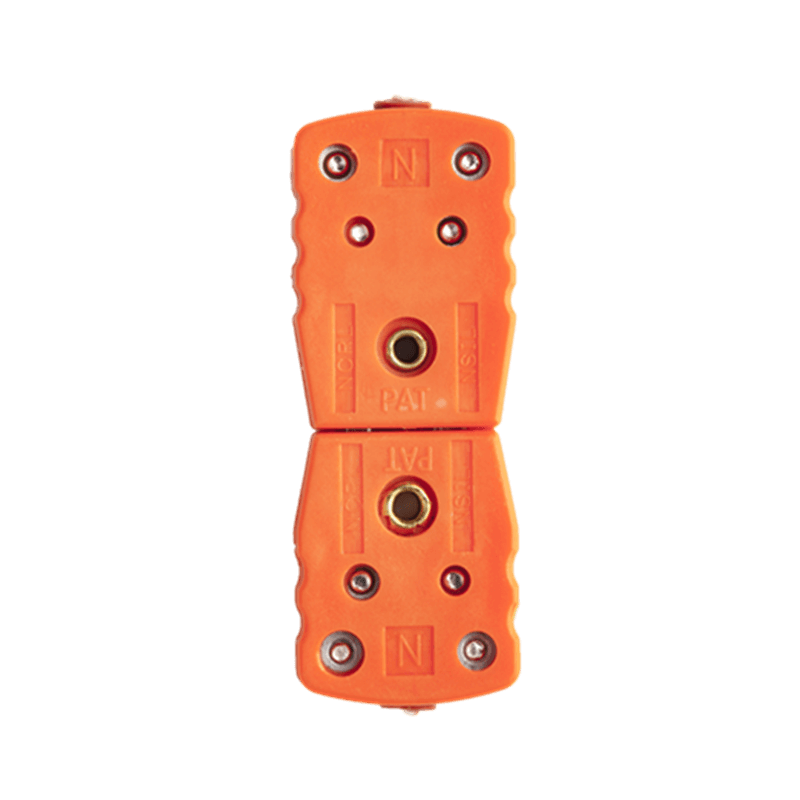

| N | Nicrosil | Nisil | MICC-MC-N-M/F | Orange | ABS | 120℃ | 11g |
| S | Cu | Cu-Ni | MICC-MC-S-M/F | Green | ABS | 120℃ | 9g |
MICC Thermocouple Connector catalogue.pdf
