KD
MICC

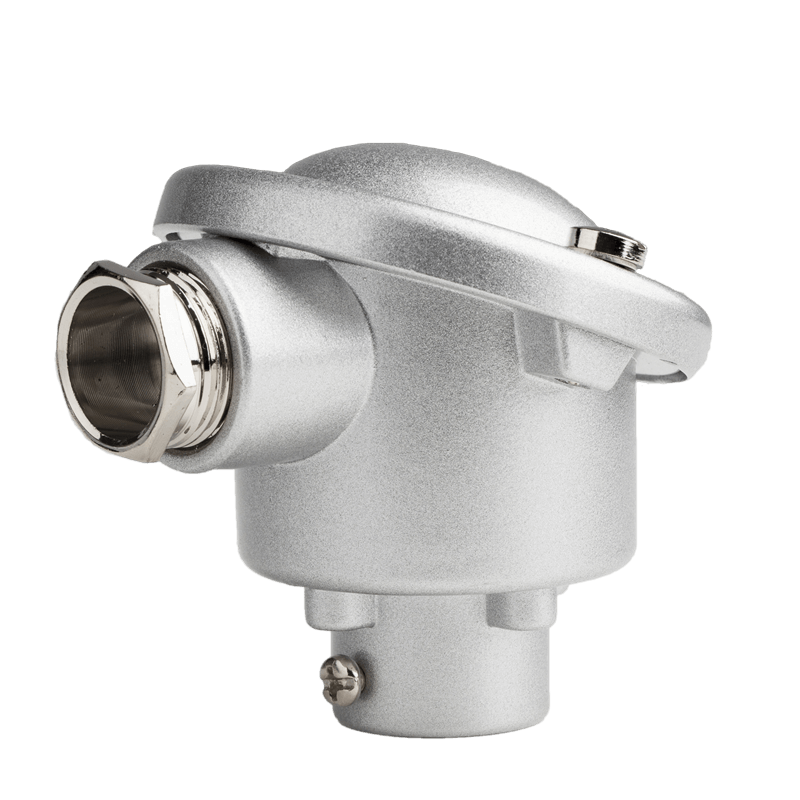

Thermocouple head KD details:
Drawing:
Material: ACD12 aluminium
Protection tube entry: PF1/2",BSP1/2",NPT1/2",M20*1,M22*1.5,G1/2"
Extension wire entry: M20*1.5,M22*1.5,G1/2"
Color available: silvery, yellow, red, blue, black, etc.
Screw distance: 33mm
Material of terminal block: ceramic or bakelite
Form of terminal block: 2 poles, 3 poles, 4 poles, 6 poles
Weight: 160g
Package: 50pcs/ctn for thermocouplr heads, 250pcs/ctn for terminal blocks
IP code: IP65 of IEC 529
Terminal block
Thermocouple head KD details:
Drawing:
Material: ACD12 aluminium
Protection tube entry: PF1/2",BSP1/2",NPT1/2",M20*1,M22*1.5,G1/2"
Extension wire entry: M20*1.5,M22*1.5,G1/2"
Color available: silvery, yellow, red, blue, black, etc.
Screw distance: 33mm
Material of terminal block: ceramic or bakelite
Form of terminal block: 2 poles, 3 poles, 4 poles, 6 poles
Weight: 160g
Package: 50pcs/ctn for thermocouplr heads, 250pcs/ctn for terminal blocks
IP code: IP65 of IEC 529
Terminal block
