| Properties | ||||||

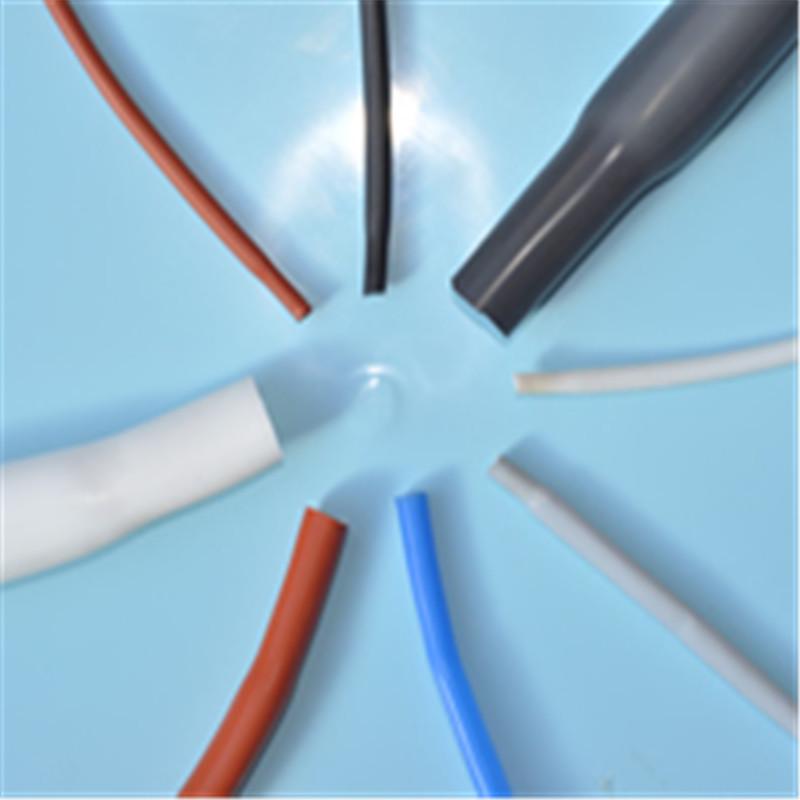

| Color | Grey, rust red | outlook | Shining surface and clean inwall | |||
| Working temperature | 50200 | Shrinkage temperature | ≥90% | |||
| Permittivity（★）50HZ | 3.2 | Axial shrinkage（Dia.）（%） | About50 | |||
| Hardness | 75±10 | Tensibility（%） | 400 | |||
| Corrosion | No corrosion | FlammabilityUL-224 | VW-1 | |||
| Antibiotic and erosion resistance | Good | Resistance | wear resistance, acid-base resistance、waterproof, mildew proof, corona electrode, industrial solvent resistance, Resistance to external mechanical damage, oil and special liquid resistance | |||
| Toughness | Good | |||||
| Tensile strength Mpa(kgf/cm) | 6.9（70） | |||||
| Breakdown voltage （normal temperature）（kv/mm) | 25 | environmental protection | no harm to human and environmrnt | |||
| Specifications | ||||||||
| Specifi cations | Sides before shrink | Sides after shrink | ||||||
| Inside diameter | Wall thickness | Inside diameter | Wall thickness | |||||
| 1.5 | 1.7±0.2 | 0.5±0.1 | 0.8±0.1 | 1.0±0.2 | ||||
| 2.0 | 2.3±0.2 | 0.5±0.1 | 1.2±0.1 | 1.0±0.2 | ||||
| 3.0 | 3.2±0.2 | 0.5±0.1 | 1.8±0.1 | 1.0±0.2 | ||||
| 4.0 | 4.5±0.3 | 0.5±0.1 | 2.2±0.1 | 1.0±0.2 | ||||
| 5.0 | 5.6±0.3 | 0.5±0.1 | 2.9±0.1 | 1.0±0.2 | ||||
| 6.0 | 6.6±0.3 | 0.5±0.1 | 3.3±0.1 | 1.0±0.2 | ||||
| 7.0 | 7.6±0.4 | 0.5±0.1 | 3.8±0.1 | 1.0±0.2 | ||||
| 8.0 | 8.6±0.4 | 0.5±0.1 | 4.3±0.1 | 1.0±0.2 | ||||
| 9.0 | 9.0±1.0 | 0.5±0.1 | 4.8±0.1 | 1.0±0.2 | ||||
| 10.0 | 10.0±1.0 | 0.5±0.1 | 5.2±0.1 | 1.0±0.2 | ||||
| 12.0 | 12.0±1.0 | 0.7±0.1 | 6.2±0.1 | 1.5±0.2 | ||||
| 14.0 | 14.0±1.0 | 0.7±0.1 | 7.5±0.1 | 1.5±0.2 | ||||
| 15.0 | 15.0±1.0 | 0.7±0.1 | 8.2±0.1 | 1.5±0.2 | ||||
| 17.0 | 17.0±1.0 | 0.7±0.1 | 8.5±0.1 | 1.5±0.2 | ||||
| 20.0 | 20.0±1.0 | 1.0±0.1 | 12.0±0.1 | 2.0±0.3 | ||||
