MICC
SINGLE PAIR INSTRUMENT CABLE
• SUBJECT
SINGLE PAIR INSTRUMENT CABLE 1X2X0.88MM2/0.9MM2, PLAIN ANNEALED COPPER TO ASTM B3, SOLID/STRAND CONDUCTOR CLASS 1 TO IEC 60228, XLPE INSULATION, TWISTED PAIR, OVERALL SCREENED WITH AL-PET LAMINATED FOIL+TINNED COPPER DRAIN WIRE, BLACK COLOR PVC TM1 FLAME RETARDENT BEDDING, GALVANIZED DOUBLE STEEL TAPE ARMPRED, OUTER SHEATH: RED COLOR PVC FLAME RETARDENT, OIL AND SUNLIGHT RESISTANT JACKET 500V TO EN50288-7.

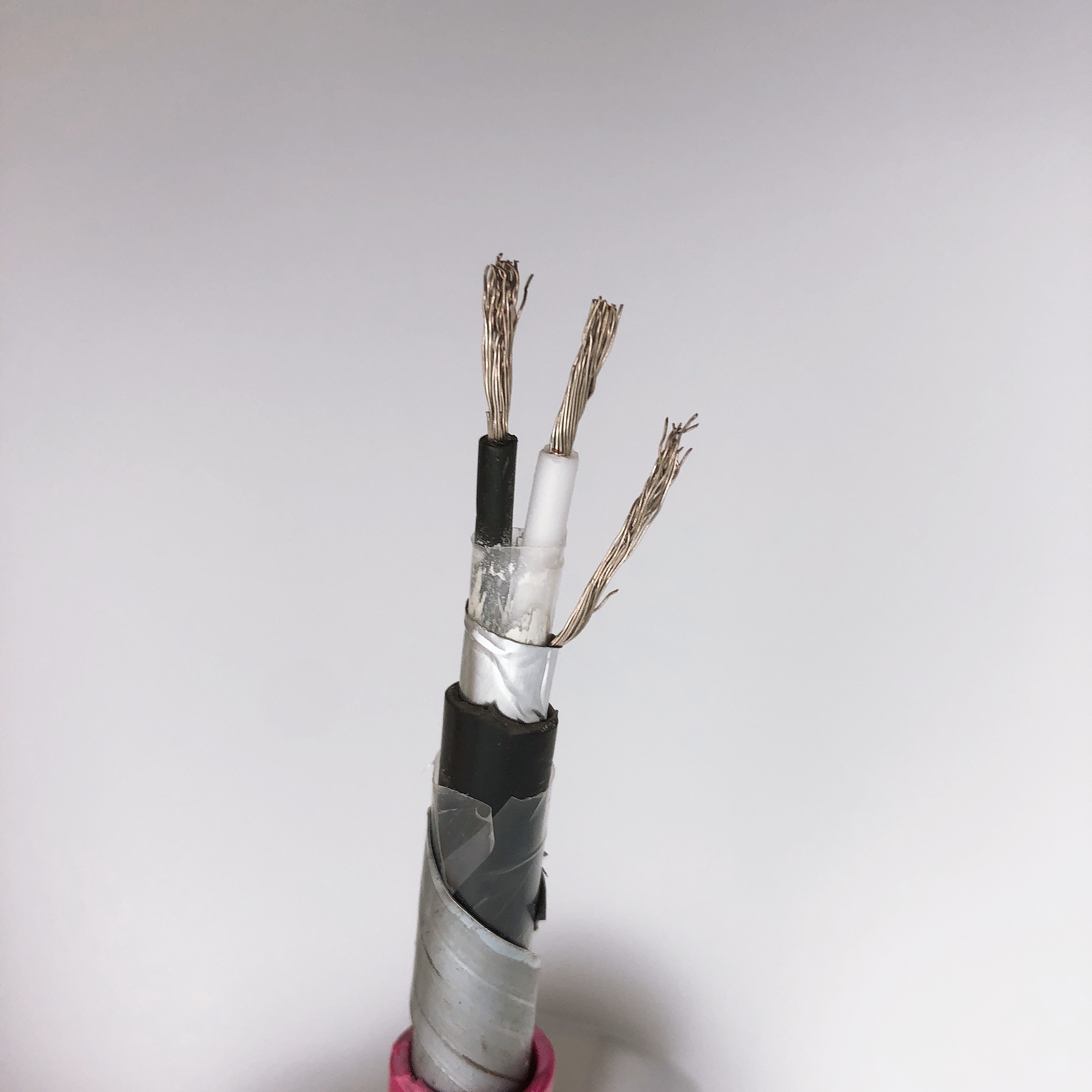

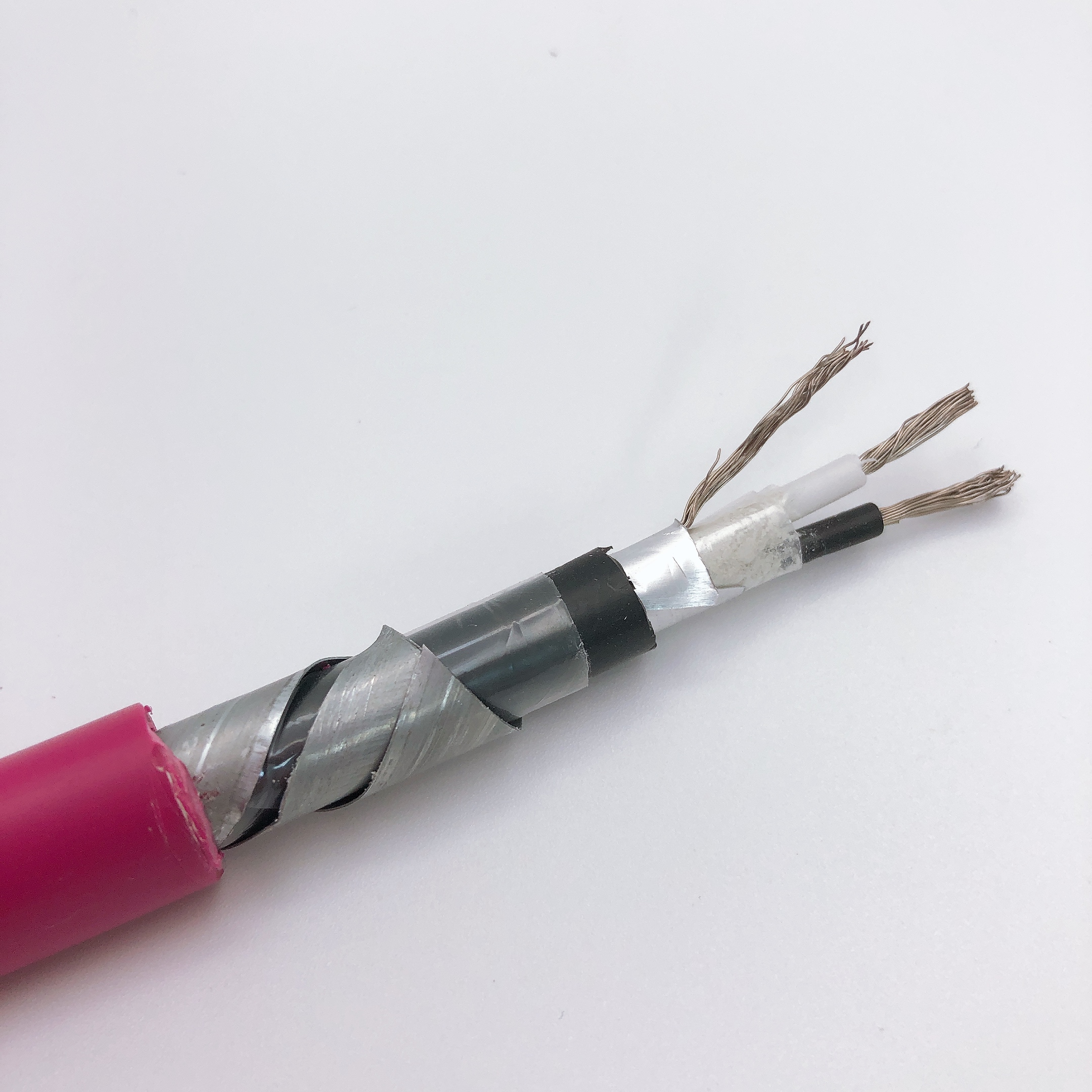

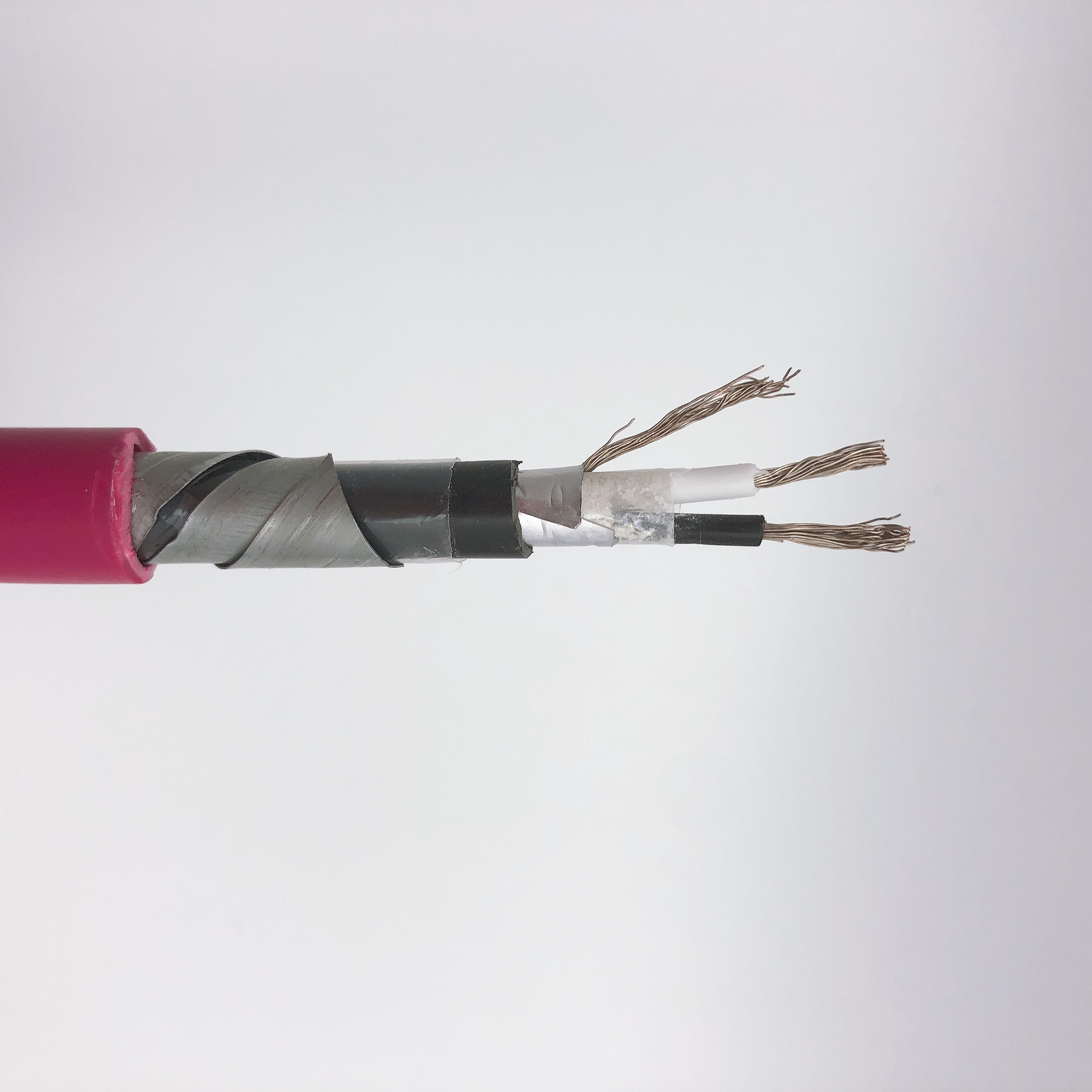

• TECHNICAL FEATURES

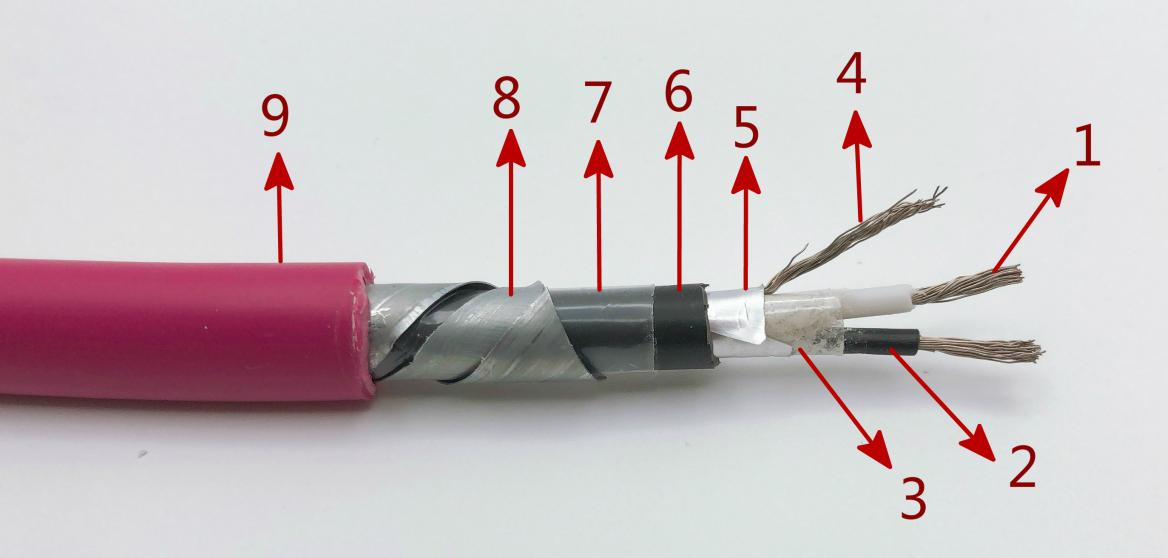

1. Conductor: Plain annealed high quality strand copper conductor to ASTM B3 (0.9MM2 to IEC 60228)
2. Conductor Insulation: Twisted pairs 90°C XLPE(Black & White)
3. Pair Wrapping: Filler + Plastic Film (Polyester Tape)
4. Drain Wire: 0.5mm2 (7/0.3mm) Tinned Copper to ASTM B3
5. Shield: Aluminum Tape, 100% Coverage
6. Inner Sheath: Black PVC Flame Retardant
7. Inner Wrapping: Plastic Film (Polyester Tape)
8. Screen Armour: Double Galvanized Steel Tape
9. Outer Sheath: Red PVC Flame Retardant Marking ''MICC-SPIC-1X2X.9MM2-IEC'' every meter
• COLOR CODE
ANSI Code | ANSI MC 96.1 Color Coding | Maximum T/C Grande temp. range | Tolerance | IEC 584-3 Color Coding | IEC Code | |
Thermocouple grade | Extension grade | |||||
K |
|
| 0 to 200℃ | ±4.0℉ |
| K |
J |
|
| 0 to 100℃ | ±4.0℉ |
| J |
T |
|
| 0 to 200℃ | ±1.8℉ |
| T |
E |
|
| 0 to 200℃ | ±3.0℉ |
| E |
N |
|
| 0 to 200℃ | ±4.0℉ |
| N |
R/S | NONE |
| 0 to 200℃ | ±9.0℉ |
| S |
B | NONE |
| 0 to 100℃ | ±6.7℉ |
| B |
• PACKING AND IDENTIFICATION

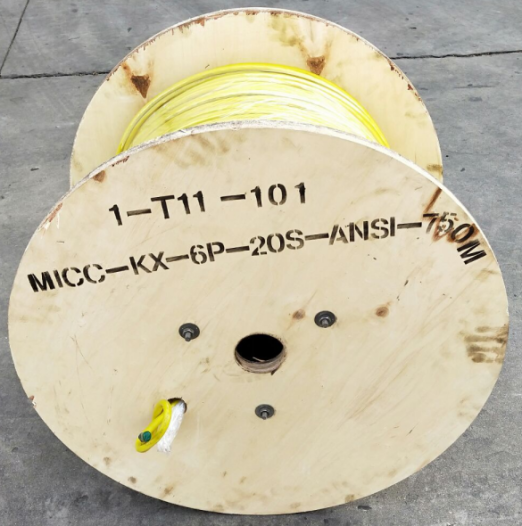

1. Coding on Wooden Spool :
‘’Customer Requested Code’’
‘’MICC-SPIC-1X2X.9MM2-IEC ‘’

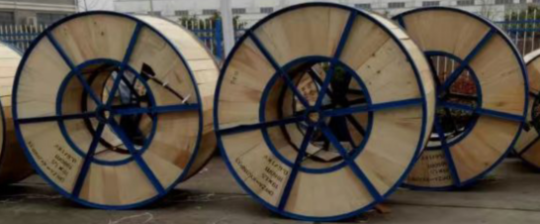

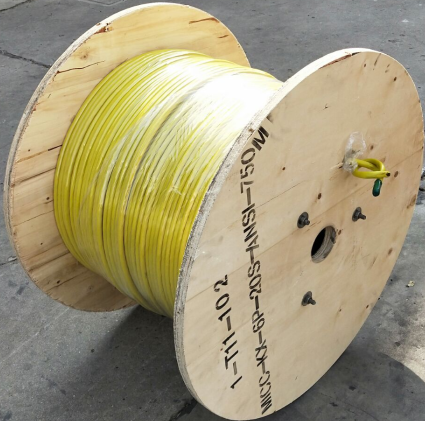

2. Package items carefully to avoid damage during shipment like below:
SINGLE PAIR INSTRUMENT CABLE
