KSE
MICC

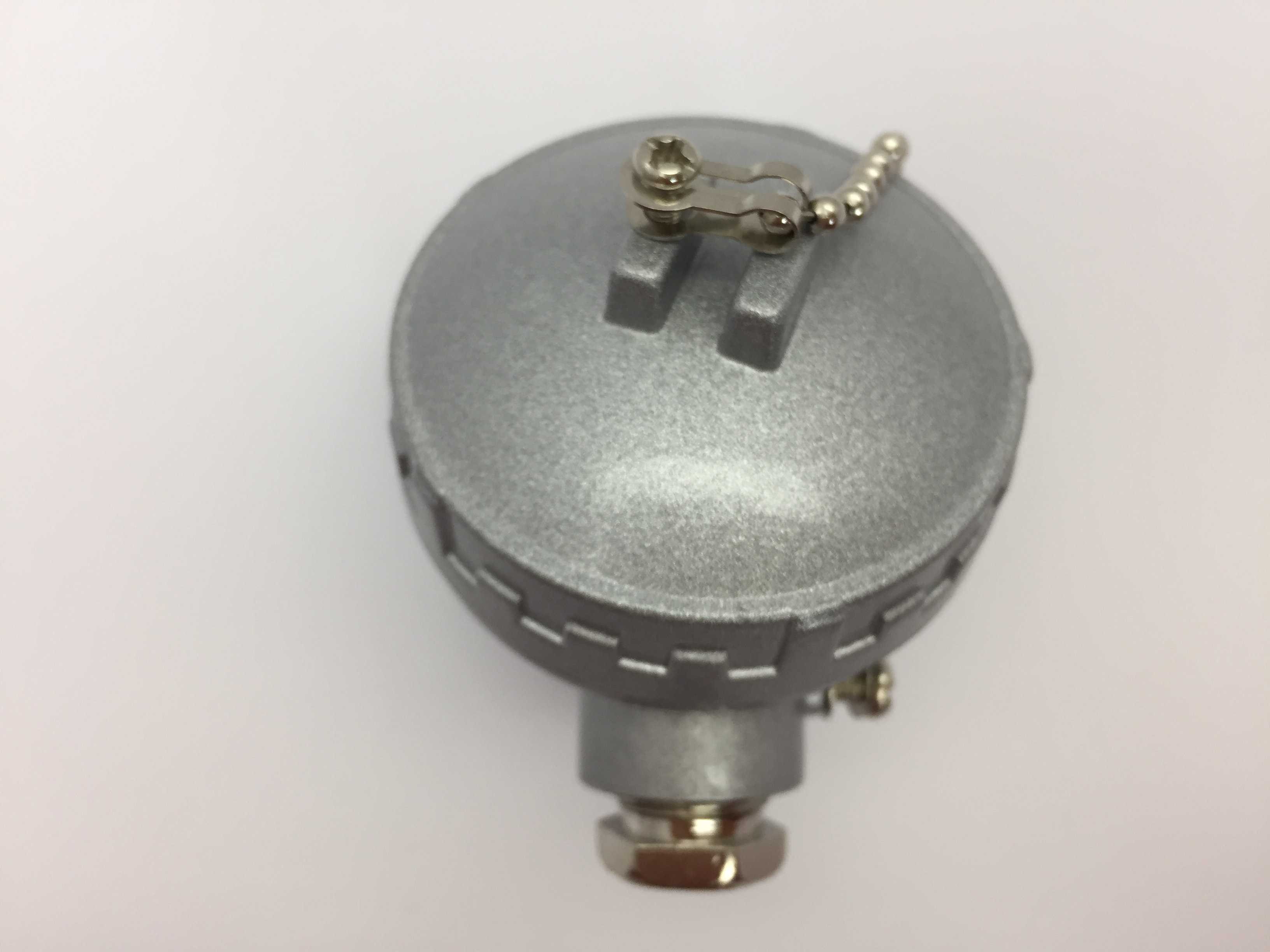

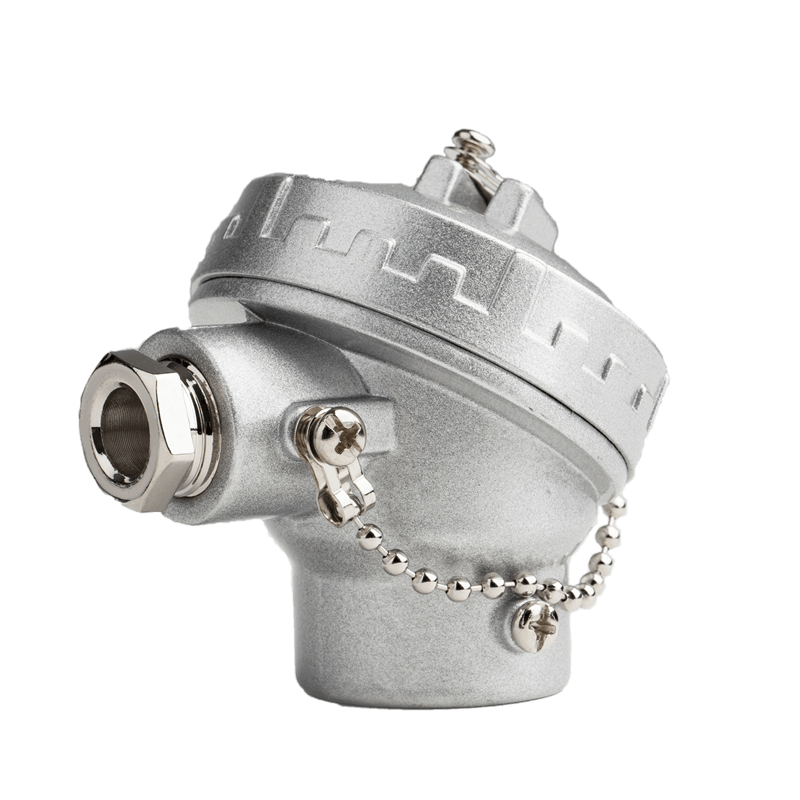

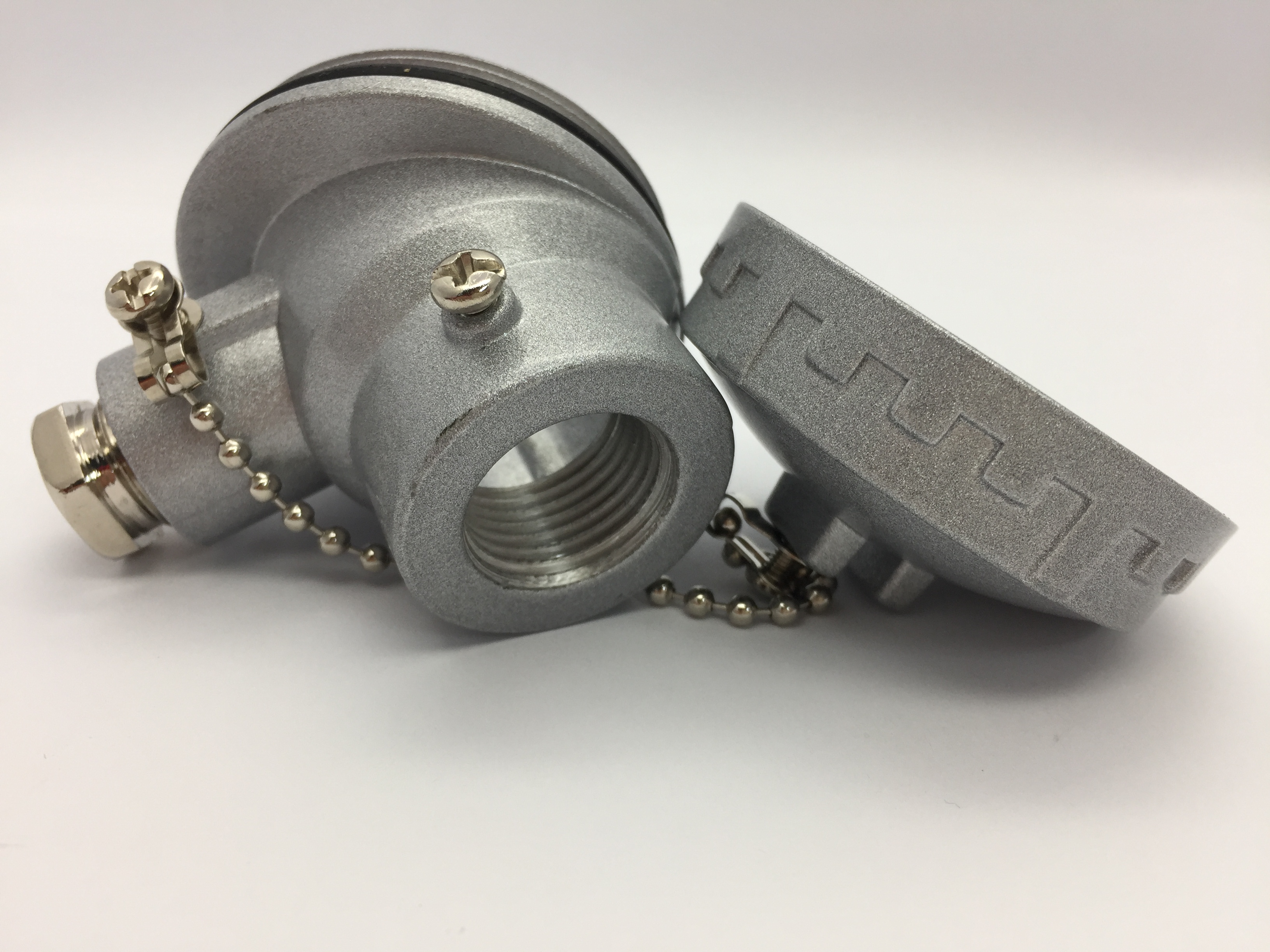

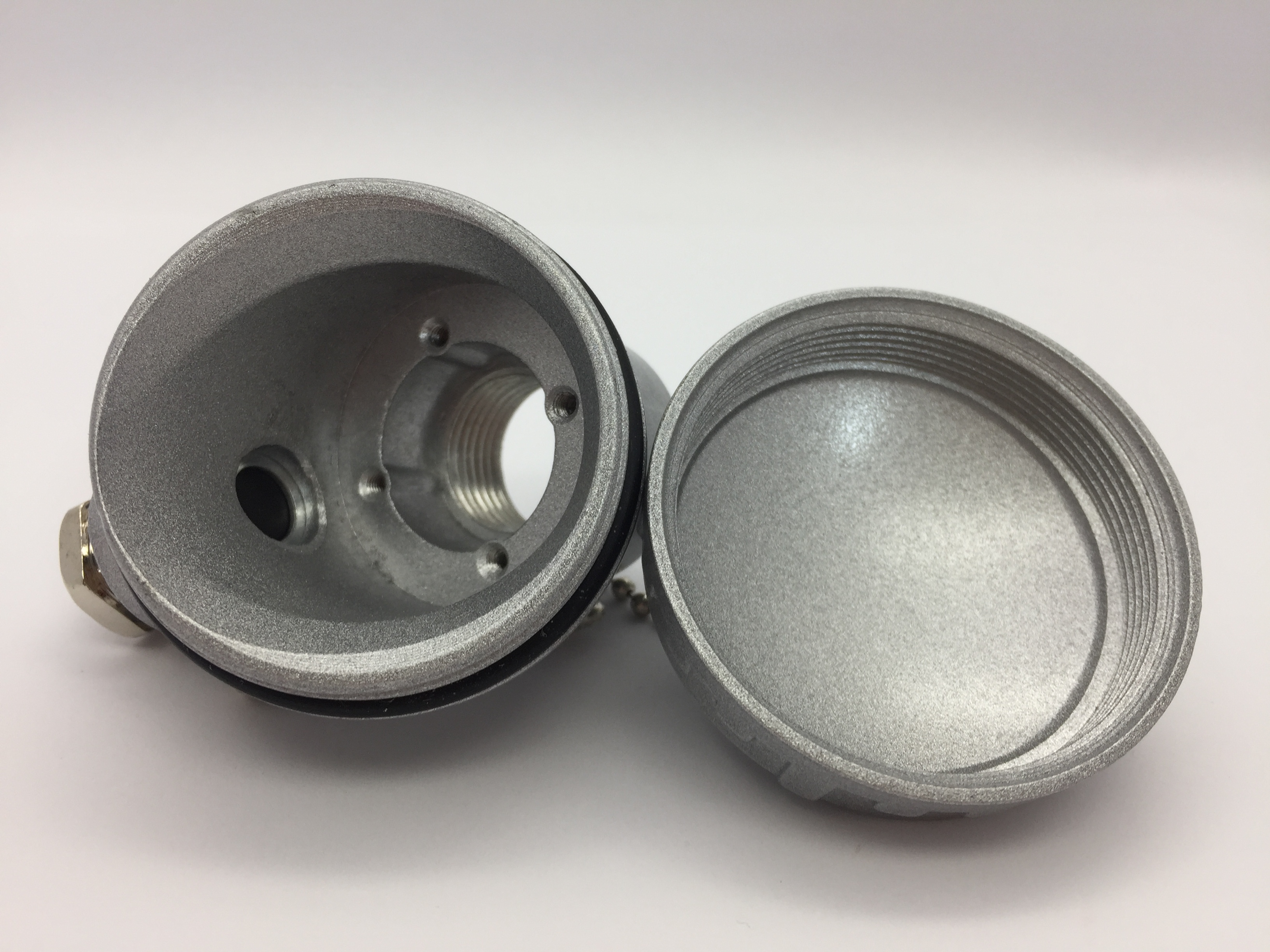

Thermocouple head KSE details:

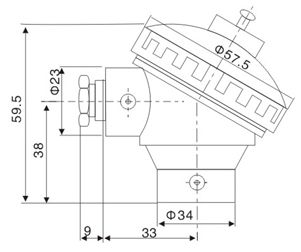

Drawing:
Material: ACD12 aluminium, SS304, SS316
Protection tube entry: M12*1, M16*1, G1/2’’, NPT1/2’’
Extension wire entry: M16*1.5, G3/8’’, NPT3/8’’
Color available: silvery, yellow, red, blue, black, etc.
Screw distance: 27mm
Material of terminal block: ceramic or bakelite
Form of terminal block: 2 poles, 3 poles, 4 poles
Weight: 145g
Package: 50pcs/ctn for thermocouplr heads, 250pcs/ctn for terminal blocks
IP code: IP65 of IEC 529
Terminal block
