Cartridge heater
MICC
| ITEM | Pressure | Insulation | Resistance Error | Leakage current | Line Length Error | Diameter Error | Tube length Error | Temperature error | Production range | |

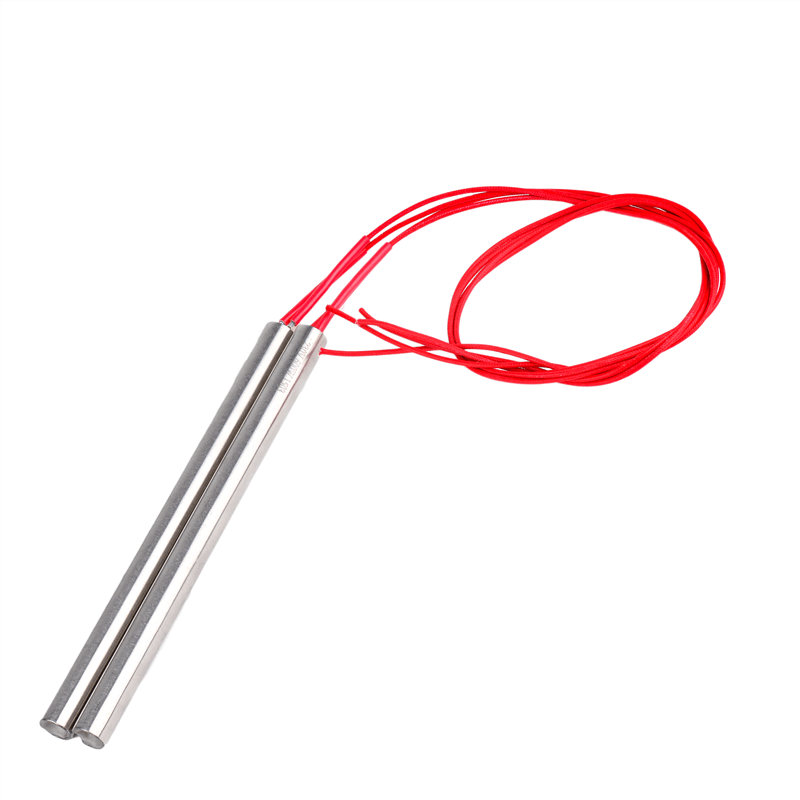

| Big-power High-density Cartridge Heater | ≥1.6kV/5S | ≥500MΩ | ±5% | - | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Self-regulating cartridge heating pipe | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | ±0.3℃ | ≥φ12mm | |

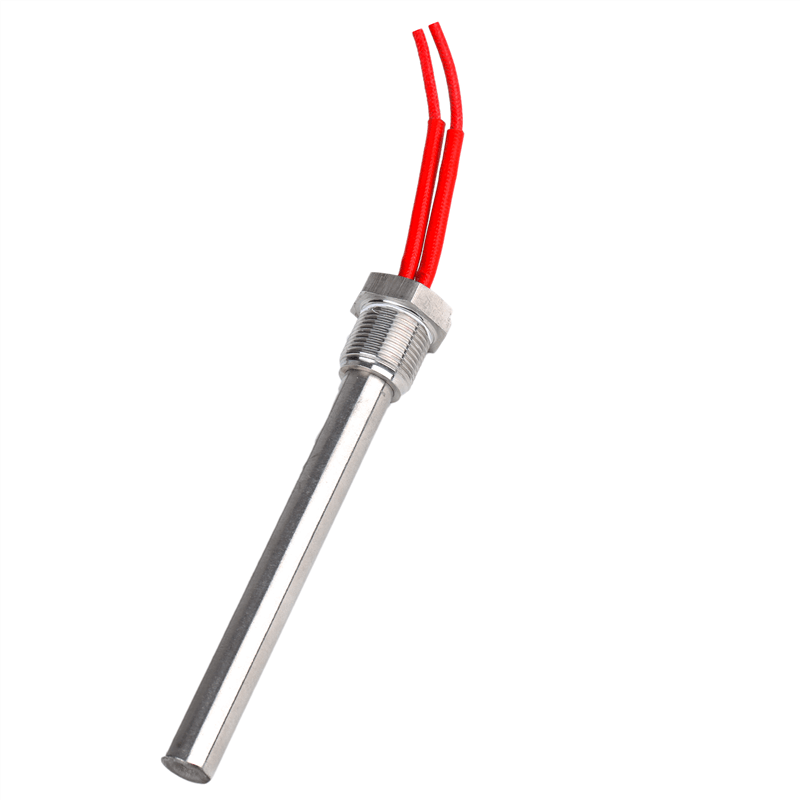

| Cartridge heater with screw | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| External temperature-controlled cartridge heater tube | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Flat cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Modular cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Liquid immersion cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | | | |
| Single lead cartridge heater | - | - | ±5% | - | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Cartridge heater with internal lead wire | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Retainer cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Liquid thermal cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |

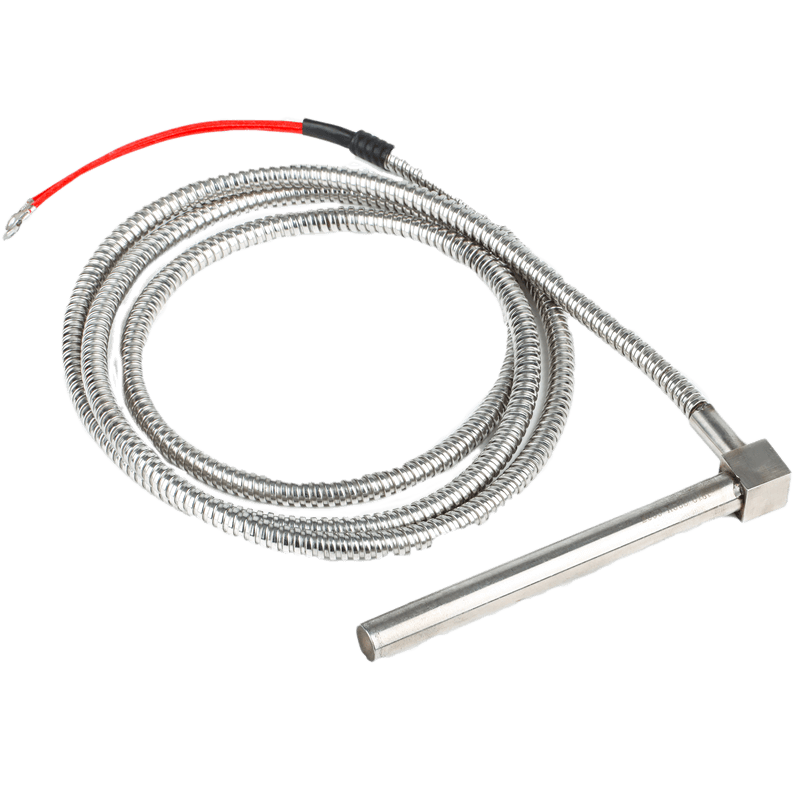

| Right angle cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Heating tube with ultrashort high-density double-headed | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |

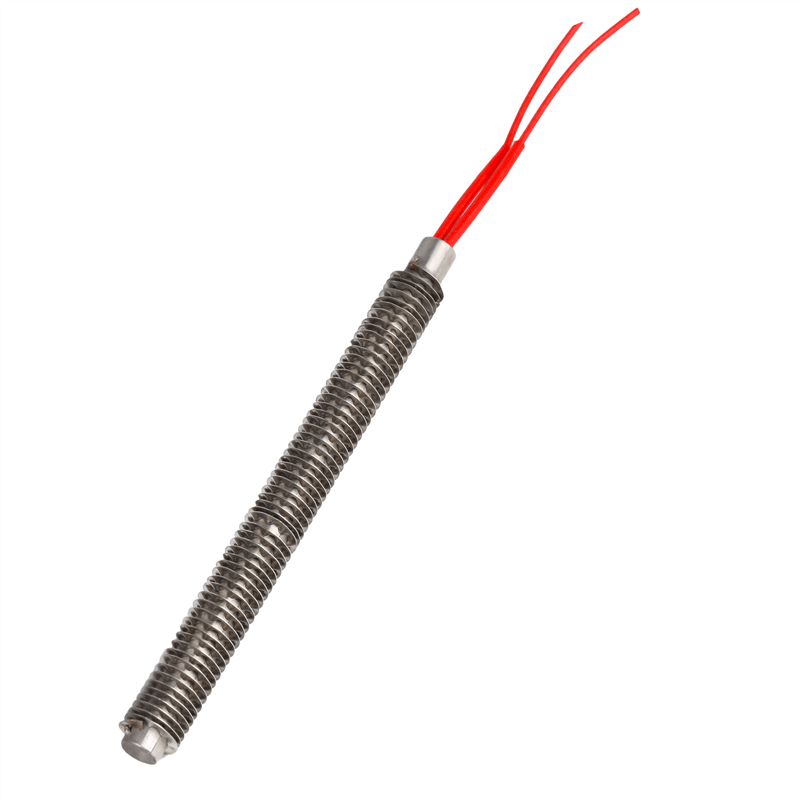

| Finned cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |

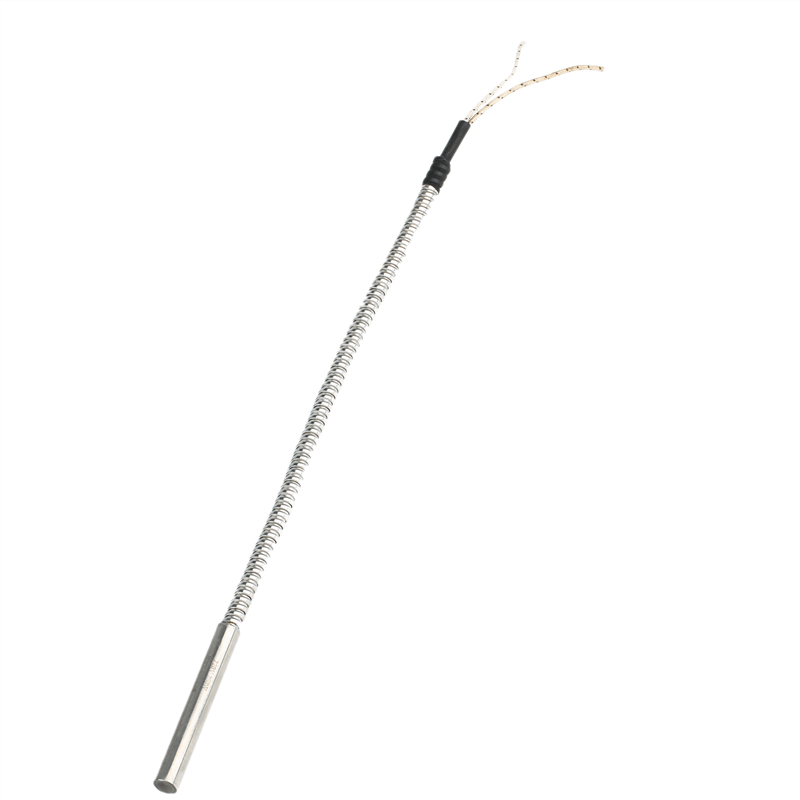

| Cartridge heater with spring line | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Superfine cartridge heater | - | ≥500MΩ | ±5% | - | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| ITEM | Pressure | Insulation | Resistance Error | Leakage current | Line Length Error | Diameter Error | Tube length Error | Temperature error | Production range | |
| Big-power High-density Cartridge Heater | ≥1.6kV/5S | ≥500MΩ | ±5% | - | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Self-regulating cartridge heating pipe | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | ±0.3℃ | ≥φ12mm | |
| Cartridge heater with screw | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| External temperature-controlled cartridge heater tube | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Flat cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Modular cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Liquid immersion cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | | | |
| Single lead cartridge heater | - | - | ±5% | - | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Cartridge heater with internal lead wire | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Retainer cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Liquid thermal cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Right angle cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Heating tube with ultrashort high-density double-headed | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Finned cartridge heater | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Cartridge heater with spring line | ≥1.6kV/5S | ≥500MΩ | ±5% | ≤0.3mA | ±2mm | ±0.01mm | ±0.5mm | - | - | |
| Superfine cartridge heater | - | ≥500MΩ | ±5% | - | ±2mm | ±0.01mm | ±0.5mm | - | - | |
