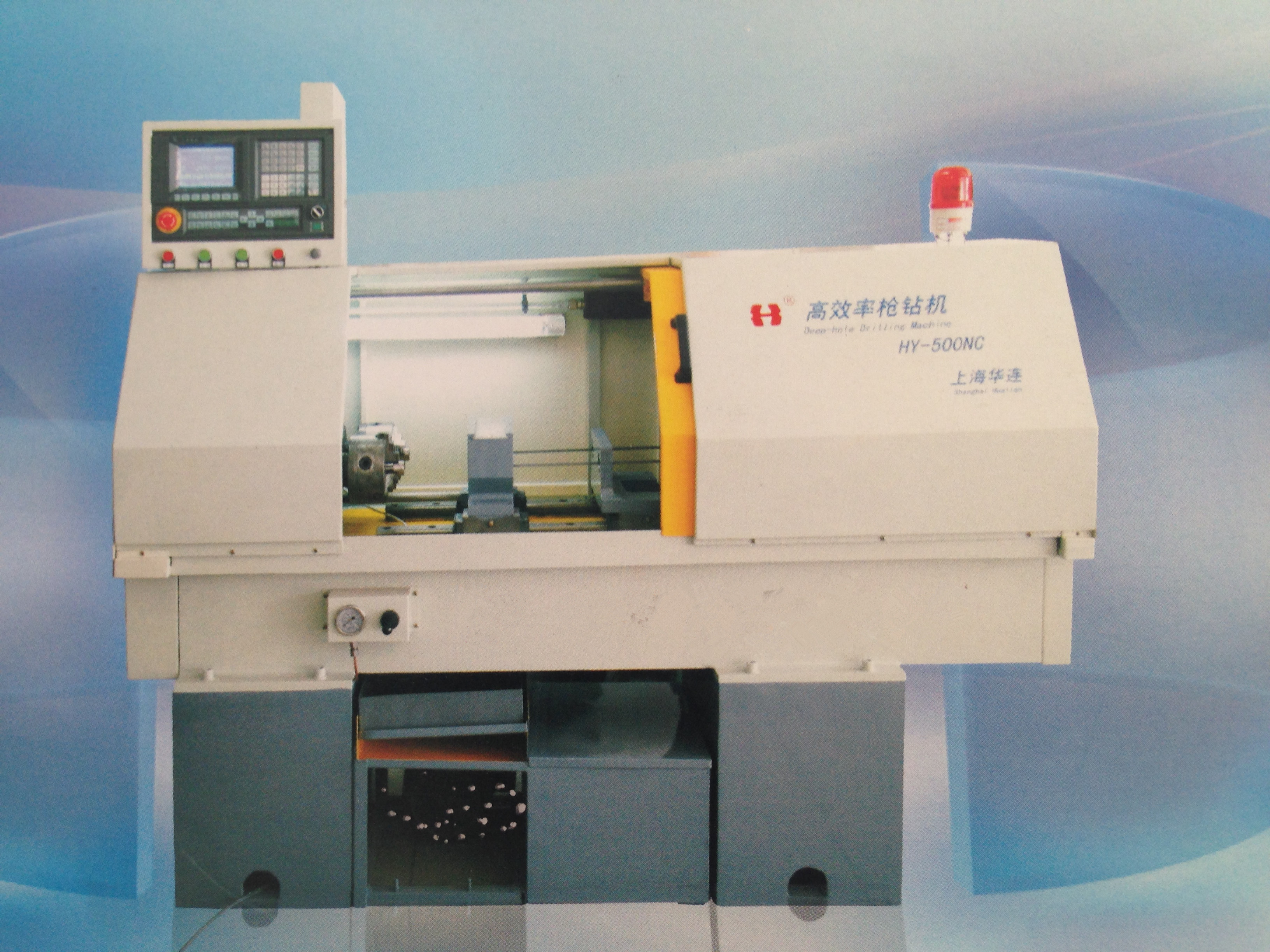

HY-500NC
MICC
Efficient deep hole drilling machine
Introduction:
High-efficiency Gun Drilling (deep hole ) machine is our factory mechanical and electrical integration, and gun drilling engineering and technical personnel in the absorption of domestic and foreign-related technology, military technology, based on the use of foreign components independently developed some of the deep-hole processing equipment.
Equipment is mainly used in machinery, instruments, electrical equipment, mold manufacturing industry, deep processing of blind holes. Single and multi-axis devices have more kinds of patterns. 500mm~3000mm depth of several series, the processing aperture 2mm~12mm, can meet a variety of manufacturing needs.
CNC driven equipment can be achieved high-precision, high efficiency processing.
Compared to overseas, the local price of comparable models 1/10, energy consumption of similar models for 1/3, while the machining accuracy can compare with that.
Specification and technical data
Number of drilling spindle | 2 | Coolant pump motor | 4000W |
Range of drilling inner dia | 2-12mm | Coolant pump pressure | 7MPa |
Depth of drilling | 500mm | Pump output | 40L/min |
Forward backward travel | 680mm | Coolant tank capacity | 600L |
Main motor | 750W | NC system | Nanjing xingqiang |
Longitudinal motor | 550W | Net weight | 2.3t |
Workpiece driven motor | 550W | Floor space | 2100mm*520mm |
Spindle speed | 0~3000 | Power rating | 5850W |
