KX-PFA/PFA-2*36AWG

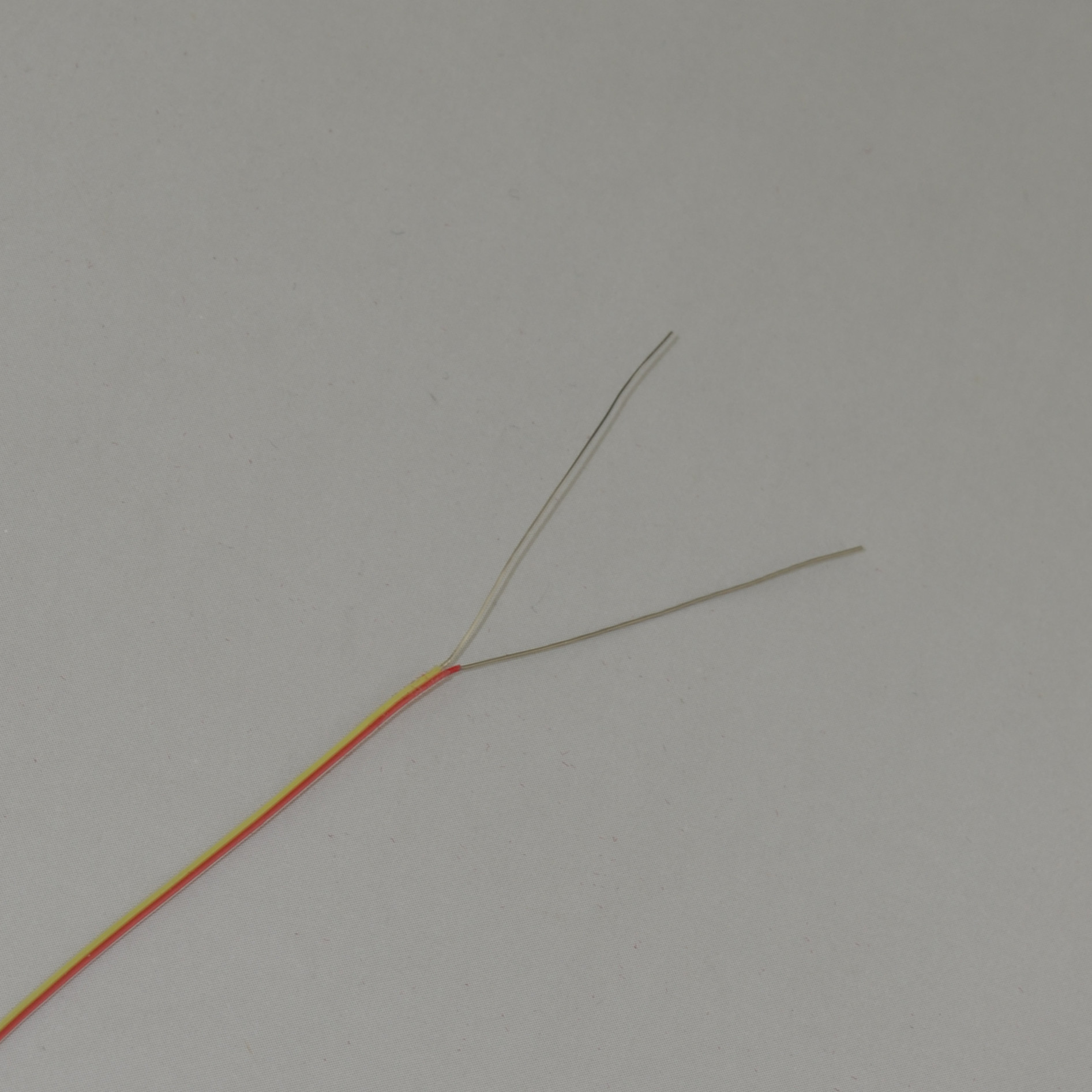

Thermocouple Extension wire Type KX-PFA/PFA-2×36AWG
Description:

1, SUBJECT
This specification covers the requirements for PFA insulated, PFA sheathed thermocouple
extension cable, type KX , 2×1/0.13mm, solid wire, standard tolerance and color code according to ANSI.

2, TECHNICAL FEATURES

A. Conductors:
Solid thermocouple extension wire


Conductors Size(AWG)	NO.of Strands &Gauge
36	2/0.13mm


B. Insulation:
Extruded PFA(260℃)


Nominal Insulation Thickness

0.08mm±0.2

Color code


Positive	Color	Negative	Color
Chromel	Yellow	Alumel	Red


C. Assembly:
Two conductors (positive and negative) parallel construction.

D. Overall Jacket
Extruded PFA(260℃)


Nominal Sheath Thickness	0.15mm±0.2
Color code	Transparent


3, DIMENSIONS AND TOLERANCES


Dimensions/tolerances(mm)

Ø0.4±0.2


4, CALIBRATION TOLERANCE


Temperature range	Standard tolerance	Special tolerance
0º to 300ºC	±2.2℃ or 0.75%	±1.1℃ or 0.4%

Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other
compensating cable like KCA, KCB and so on.
Besides those wires, we can also produce according to your demand.

Color code table


JIS, DIN and others are also available.
