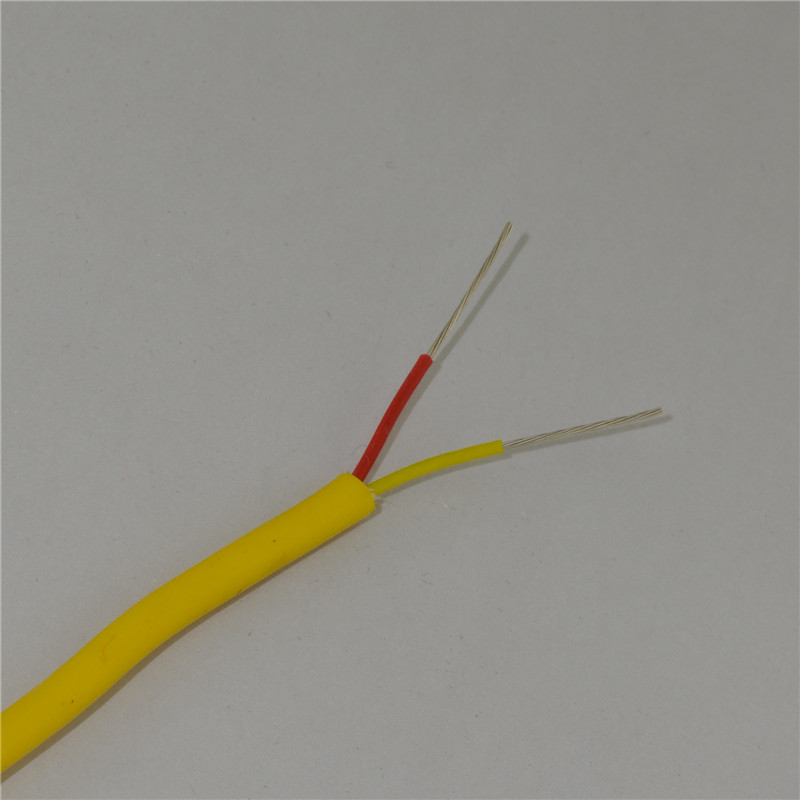

Thermocouple Extension wire Type KX-SIL/SIL-2×24AWG-ANSI
1, SUBJECT
Thermocouple wire Types J, K, E, T, N, B, C, R, S (Alloys or Calibrations) and RTD wire insulated with PVC, PFA, FEP, Fiberglass, Kapton, and Ceramic along with Stainless Steel Over Braid designs from Rugged 20 gage to Very Fine 40 gage Diameter.This specification covers the requirements for silicone rubber insulated, silicone rubber
sheathed thermocouple extension cable, 2*24AWG, stranded wire, standard tolerance
and color code according to ANSI.
2, TECHNICAL FEATURES
A. Conductors:
Stranded thermocouple extension wire
| Conductors Size(AWG) | NO.of Strands &Gauge |
| 24 | 7/0.2mm |
B. Insulation:
Silicone rubber(200ºC)
| Nominal Insulation Thickness | 0.21mm±0.2 |
Color code
| Positive | Color | Negative | Color |
| Chromel | Yellow | Alumel | Red |
C. Assembly:
Two conductors (positive and negative) parallel construction.
D. Overall Jacket
Silicone rubber(200ºC)
| Nominal Sheath Thickness | 0.8mm±0.2 |
| Color code | Yellow |
3, DIMENSIONS AND TOLERANCES
| Dimensions/tolerances(mm) | Ø4±0.2 |
4, CALIBRATION TOLERANCE
| Temperature range | Standard tolerance | Special tolerance |
| 0º to 200ºC | ±2.2℃ or 0.75% | ±1.1℃ or 0.4% |
Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other
compensating cable like KCA, KCB and so on.
Besides those wires, we can also produce according to your demand.
Color code table
JIS, DIN and others are also available.
MICC Thermocouple Cable catalogue.pdf
