KX-PVC/SCREEN/PVC-2*7/0.2

MOQ: 100m
All sizes available
Customization available

Quantity:
  • K, J, T, E, R, etc.
  • MICC
  • K, J, T, E, R, N, etc.

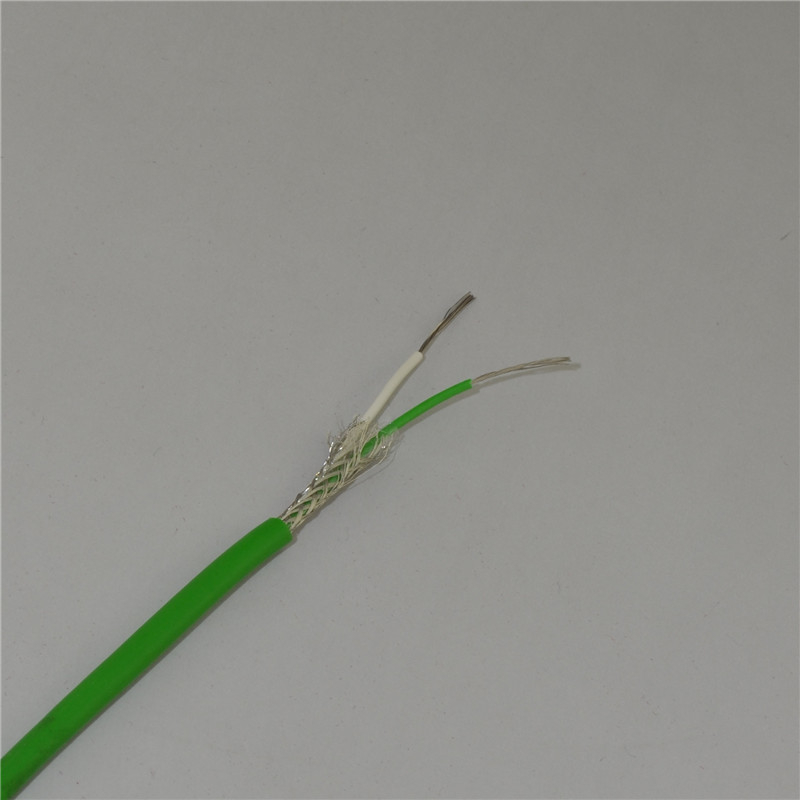

Thermocouple Extension wire Type KX-PVC/SCREEN/PVC-2*7/0.2mm-IEC

1, SUBJECT
This specification covers the requirements for PVC insulated, thermocouple extension cable with
stainless steel braid, type KX, 2×7/
0.2mm, strand wire, standard tolerance and color code according to IEC.

2, TECHNICAL FEATURES
8

A. Conductors:
Stranded thermocouple extension wire


       Conductors Size(AWG)        NO.of Strands &Gauge
       24        7/0.2mm

B. Insulation:
Extruded PVC (105℃)


       Nominal Insulation Thickness        0.30mm±0.2
Color code-IEC

       Positive        Color        Negative        Color
       Chromel        Green        Alumel        White

C. Assembly:
Two conductors (positive and negative) parallel construction.

D. Metal Overbraid
Stainless steel round wire braid, 85% minimum coverage

E. Overall Jacket
Extruded PVC(105°C)


       Nominal Sheath Thickness        0.65mm±0.2
       Color code        Green

3, DIMENSIONS AND TOLERANCES

       Dimensions/tolerances(mm)        Ø3.80±0.2

4, CALIBRATION TOLERANCE

       Temperature range        Standard tolerance        Special tolerance
       0º to 300ºC        ±2.2℃ or 0.75%        ±1.1℃ or 0.4%

Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other
compensating cable like KCA, KCB and so on
.
Besides those wires, we can also produce according to your demand.

Color code table

JIS, DIN and others are also available.
