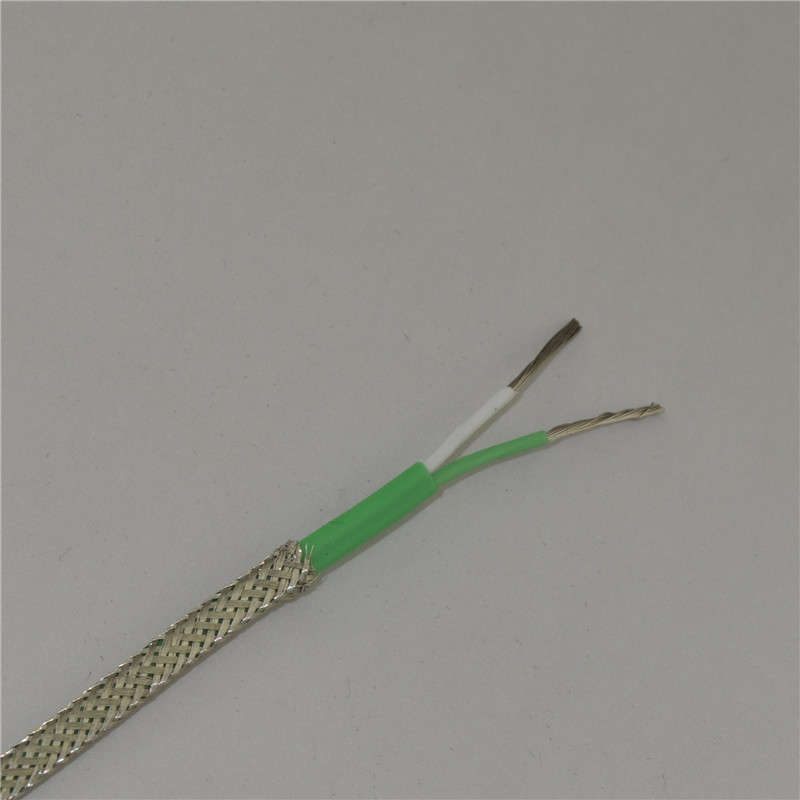

Thermocouple Extension wire Type KX-PTFE/PTFE/SSB-2×7/0.2

1, SUBJECT
This specification covers the requirements for PTFE insulated, PTFE sheathed thermocouple
extension cable, type KX with
metallic overbraid, 2×7/0.2mm, stranded wire, standard tolerance
and color code.


2, TECHNICAL FEATURES
5 ok

A. Conductors:
Stranded thermocouple extension wire


       Conductors Size(AWG)        NO.of Strands &Gauge
       24        7/0.2mm

B. Insulation:
Extruded PTFE(260℃)


       Nominal Insulation Thickness        0.31mm±0.2
Color code

       Positive        Color                Negative        Color
       Chromel        Green        Alumel        White

C. Assembly:
Two conductors (positive and negative) parallel construction.

D. Overall Jacket
Extruded PTFE(260℃)


       Nominal Sheath Thickness        0.38mm±0.2
       Color code        Green

3, DIMENSIONS AND TOLERANCES

       Dimensions/tolerances(mm)        2.28±0.25*3.3±0.25

4, CALIBRATION TOLERANCE

       Temperature range        Standard tolerance        Special tolerance
       0º to 300ºC        ±2.2℃ or 0.75%        ±1.1℃ or 0.4%

Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other
compensating cable like KCA, KCB and so on
.
Besides those wires, we can also produce according to your demand.

Color code table

JIS, DIN and others are also available.
