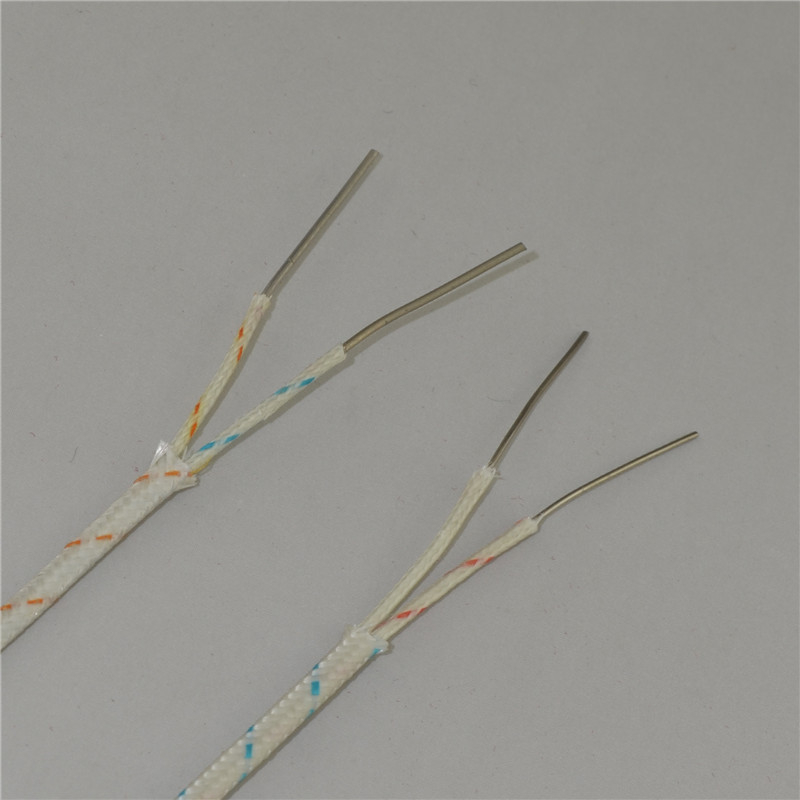

Thermocouple Extension wire Type KX-FG/FG/SSB-2*0.8mm
Description:
1, SUBJECT
Fiberglass braided insulated thermocouple wire, type K, stranded wire with metallic overbraid,
standard tolerances and color code according to IEC.
Thermocouple wire Types J, K, E, T, N, B, C, R, S (Alloys or Calibrations) and RTD wire insulated with PVC, PFA, FEP, Fiberglass, Kapton, and Ceramic along with Stainless Steel Over Braid designs from Rugged 20 gage to Very Fine 40 gage Diameter.
2, TECHNICAL FEATURES
A. Conductors:
Stranded thermocouple extension wire
| Conductors Size(AWG) | NO.of Strands &Gauge |
| 20 | 1/0.8mm |
B. Insulation:
Braided fiberglass (400ºC)
| Nominal Insulation Thickness | 0.41 mm±0.2 |
Color code -JIS
| Positive | Color | Negative | Color |
| Chromel | Red | Alumel | white |
C. Assembly:
Two conductors (positive and negative) parallel construction.
D. Overall Jacket
Braided fiberglass (400ºC)
| Nominal Insulation Thickness | 0.25mm±0.2 |
| Color code | Blue |
E. Metal Overbraid
Stainless steel round wire braid, 85% minimum coverage
3, DIMENSIONS AND TOLERANCES
| Dimensions/tolerances(mm) | 2.35±0.25×3.45±0.25 |
4, CALIBRATION TOLERANCE
| Temperature range | Standard tolerance | Special tolerance |
| 0℃ to 400℃ | ±2.2℃ or 0.75% | ±1.1℃ or 0.4% |
Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other
compensating cable like KCA, KCB and so on.
Besides those wires, we can also produce according to your demand.
Color code table
JIS, DIN and others are also available.
