RTD-PFA/PFA-3*7/0.2

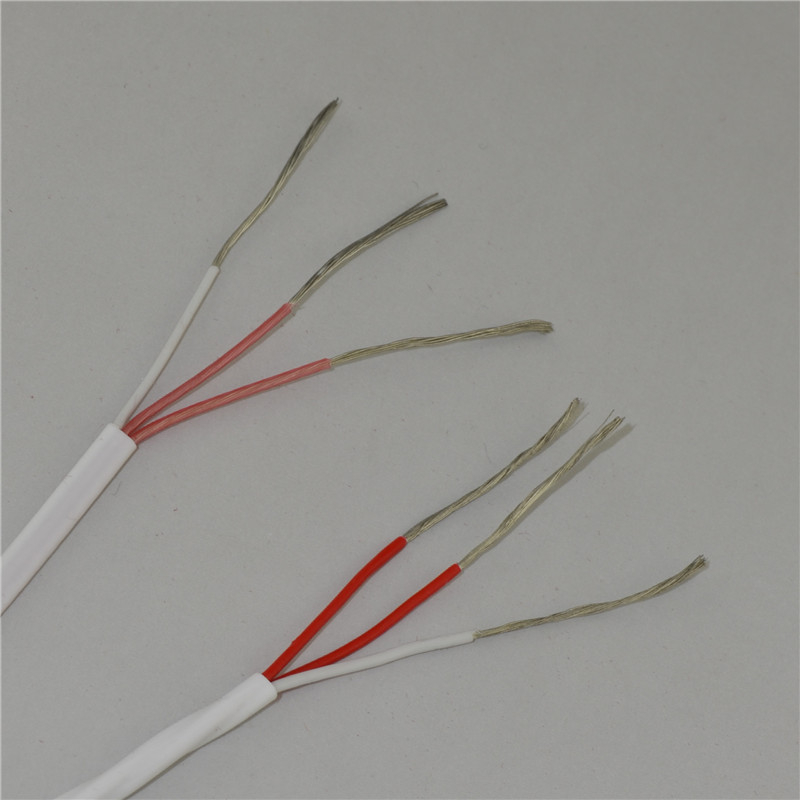

RTD Extension wire Type RTD-PFA/PFA-3*7/0.2mm

1, SUBJECT
This specification covers the requirements for PFA insulated, PFA sheathed RTD
extension cable, 3*7/0.2mm, stranded wire.

2, TECHNICAL FEATURES

A. Conductors:
Stranded RTD extension wire


Conductors Size(AWG)	NO.of Strands &Gauge
24	7/0.2mm


B. Insulation:
Extruded PFA ( 260℃)


Nominal Insulation Thickness

0.16mm±0.2

Color code:
Red/Red/ White(2 cores red and 1 core white)

C. Assembly:
Four conductors (cores) twisted construction.

D. Overall Jacket
Extruded PFA ( 260℃)


Nominal Sheath Thickness	0.24mm±0.2
Color code	White


3, DIMENSIONS AND TOLERANCES


Dimensions/tolerances(mm)

Ø2.42±0.2


4, CALIBRATION TOLERANCE


Temperature range	Standard tolerance	Special tolerance
0º to 200ºC	±2.2℃ or 0.75%	±1.1℃ or 0.4%
