RTD-PTFE /PTFE/SCREEN-3*13/0. 2

RTD Extension wire Type RTD-PTFE /PTFE/SCREEN-3*13/0. 2

1, SUBJECT

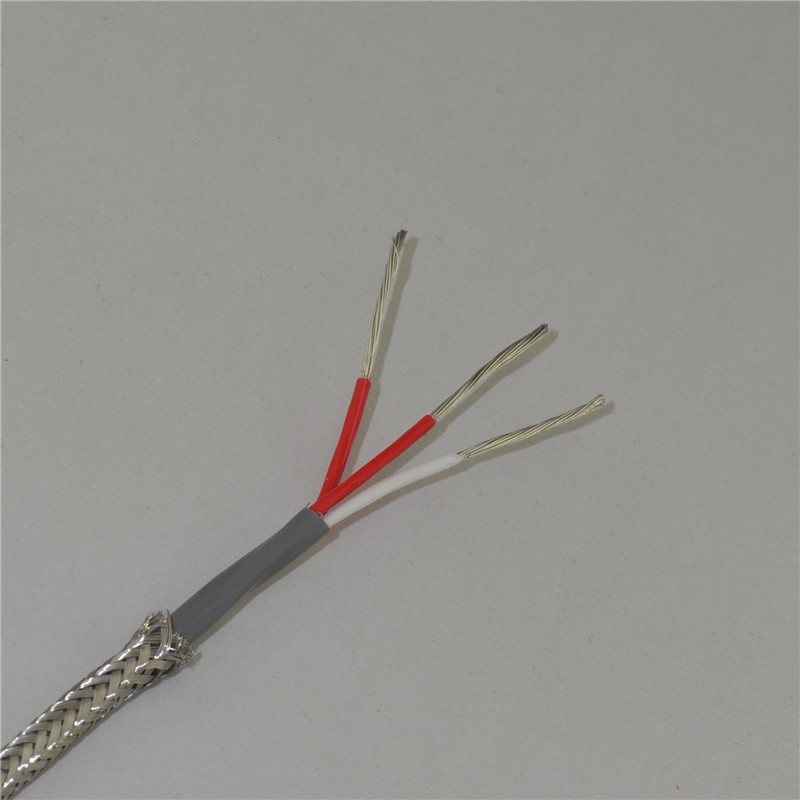

This specification covers the requirements for PTFE insulated, PTFE sheathed and
stainless steel braid RTD extension cable, 3*13/0.2mm, strand wire, twisted construction.

2, TECHNICAL FEATURES

A. Conductors:
Stranded RTD extension wire


Conductors Size(AWG)	NO.of Strands & Gauge
32	13/0.2mm


B. Insulation:
Extruded PTFE ( 260℃)


Nominal Insulation Thickness	0.35mm±0.2
Color code	Red/ Red/White (2 cores red and 1 core white)

C. Assembly:
Three conductors (cores) twisted construction.

D. Overall Jacket
Extruded PTFE (260℃)


Nominal Insulation Thickness	1.25mm±0.2
Color code	Grey

E. Metal Overbraid
Stainless steel round wire braid, 85% minimum coverage

3, DIMENSIONS AND TOLERANCES


Dimensions/tolerances(mm)

Ø3.2±0.25
