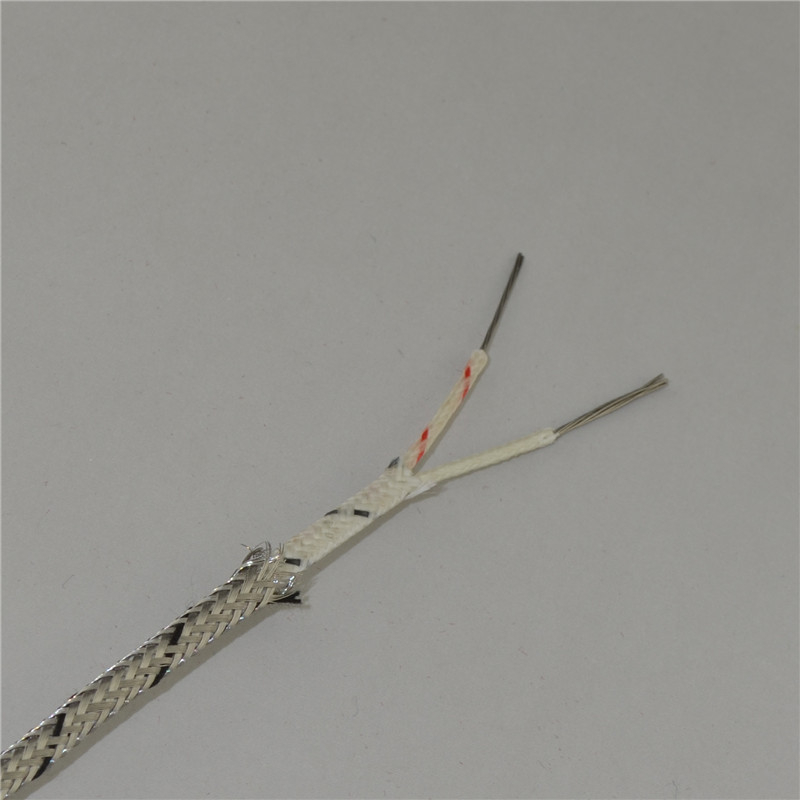

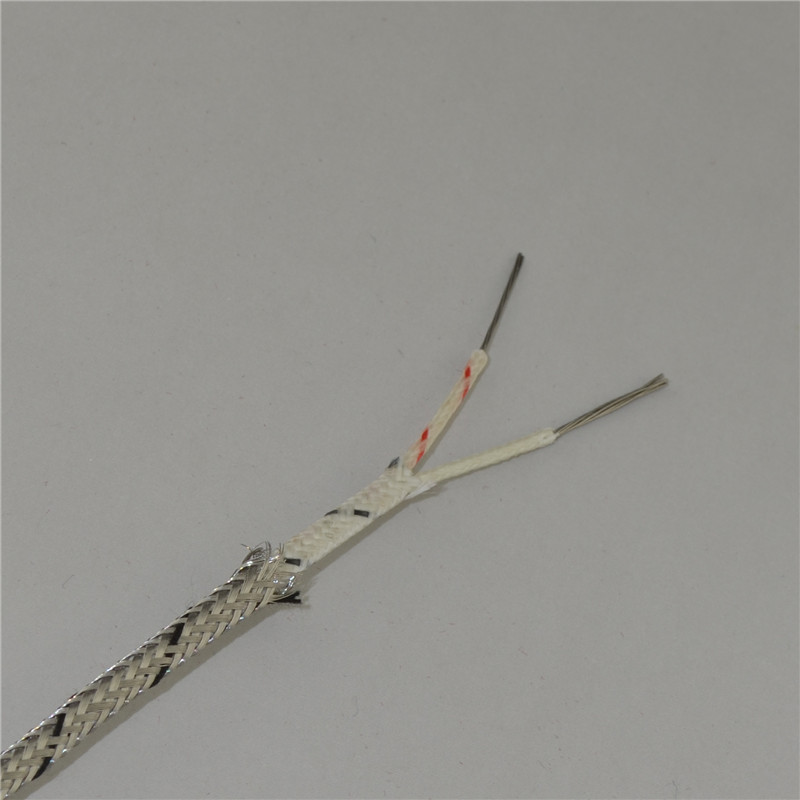

Thermocouple Extension wire Type JX-FG/FG/SSB-2×7/0.2mm
Description:

1, SUBJECT
Fiberglass braided insulated thermocouple wire, type J, stranded wire with metallic
overbraid,
2×7/0.2mm, standard tolerances and color code.

2, TECHNICAL FEATURES

5 ok
A. Conductors:
Stranded thermocouple extension wire


       Conductors Size(AWG)        NO.of Strands &Gauge
       24        7/0.2mm

B. Insulation:
Braided fiberglass (400ºC)


       Nominal Insulation Thickness         0.20 mm±0.2mm
Color code

       Positive        Color        Negative        Color
       Iron        black        Constantan        white

C. Assembly:
Two conductors (positive and negative) parallel construction.

D. Overall Jacket
Braided fiberglass (400ºC)


       Nominal Insulation Thickness        0.25mm±0.2mm
       Color code:        black or black trace

E. Metal Overbraid
Stainless steel round wire braid, 85% minimum coverage

3, DIMENSIONS AND TOLERANCES


       Dimensions/tolerances(mm)        Ø3.2±0.2mm

4, CALIBRATION TOLERANCE

       Temperature range        Standard tolerance        Special tolerance
       0℃ to 400℃        ±2.2℃ or 0.75%        ±1.1℃ or 0.4%

Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other compensating
cable like KCA, KCB and so on
.
Besides those wires, we can also produce according to your demand.

Color code table

JIS, DIN and others are also available.
