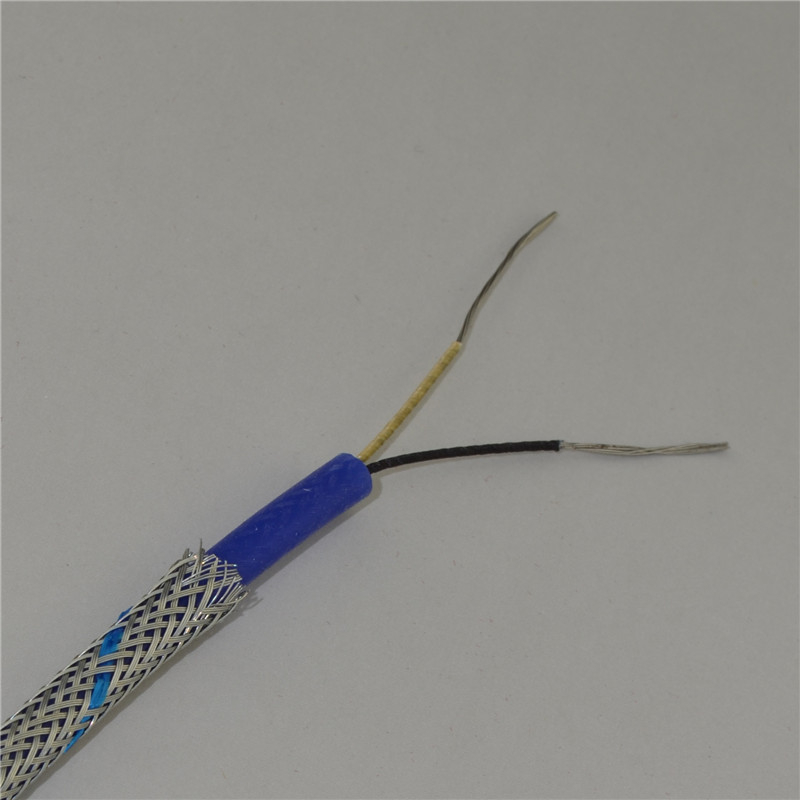

Thermocouple Extension wire Type JX-FG/SIL -2×7/0.2mm
Description:
1, SUBJECT
Thermocouple wire Types J, K, E, T, N, B, C, R, S (Alloys or Calibrations) and RTD wire insulated with PVC, PFA, FEP, Fiberglass, Kapton, and Ceramic along with Stainless Steel Over Braid designs from Rugged 20 gage to Very Fine 40 gage Diameter.This specification covers the requirements for fiberglass insulated, silicone rubber sheathed
thermocouple extension cable, 2×24AWG, strand wire, standard tolerance and color code.
2, TECHNICAL FEATURES
A. Conductors:
Stranded thermocouple extension wire
| Conductors Size(AWG) | NO.of Strands &Gauge |
| 24 | 7/0.2mm |
B. Insulation:
Braided fiberglass (400ºC)
| Nominal Insulation Thickness | 0.20 mm±0.2mm |
Color code:
| Positive | Color | Negative | Color |
| Iron | black | Constantan | white |
C. Assembly:
Two conductors (positive and negative) parallel construction.
D. Overall Jacket
Silicone rubber ( 200℃)
| Nominal Sheath Thickness | 1.0mm±0.2mm |
| Color code | Blue |
3, DIMENSIONS AND TOLERANCES
| Dimensions/tolerances(mm) | Ø4.1±0.2 |
4, CALIBRATION TOLERANCE
| Temperature range | Standard tolerance | Special tolerance |
| 0℃ to 400℃ | ±2.2℃ or 0.75% | ±1.1℃ or 0.4% |
Thermocouple extension wire type available: KX, JX, TX, EX, NX, RX,SX and other compensating
cable like KCA, KCB and so on.
Besides those wires, we can also produce according to your demand.
Color code table
JIS, DIN and others are also available.
MICC Thermocouple Cable catalogue.pdf
