RTD-FG/FG/SSB-3*26AWG

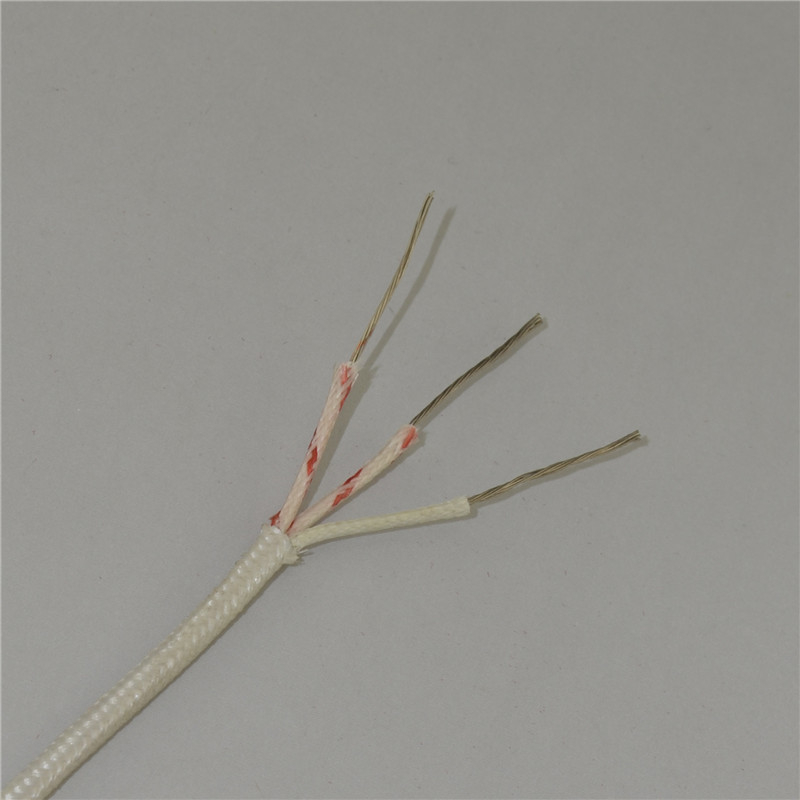

RTD Extension wire Type RTD-FG/FG/SSB -3×26AWG
Description:

1, SUBJECT
This specification covers the requirements for FB insulated, FB sheathed and stainless steel
braid RTD extension cable, 3×7/0.15mm, strand wire, twisted construction.

2, TECHNICAL FEATURES

A. Conductors:
Stranded RTD extension wire


Conductor	Conductors Size(AWG)	NO.of Strands & Gauge
Copper or Nickel	26	7/0.15mm


B. Insulation:
Braided fiberglass (400ºC)


Nominal Insulation Thickness	0.45mm±0.2mm
Color code	Red/ Red/White (2 cores red and 1 core white)

C. Assembly:
Three conductors (cores) twisted construction.

D. Overall Jacket
Braided fiberglass (400ºC)

Nominal Sheath Thickness	0.25mm±0.2
Color code	white

E. Metal Overbraid
Stainless steel round wire braid, 85% minimum coverage

3, DIMENSIONS AND TOLERANCES


Dimensions/tolerances(mm)

Ø3.0±0.25

Various kinds of extension wire can be customized according to your demands.
